AIMS Power 3840 Watt Solar with 12000 Watt Pure Sine Power Inverter Charger 120/240VAC 48VDC

AIMS Power 3840 Watt Solar with 12000 Watt Pure Sine Power Inverter Charger 120/240VAC 48VDC

$16,349.00 $21,253.70

You Save: $4,904.70 24%

.. people are viewing this, and 3 recently purchased it

Fast Free Shipping on orders over $100
Lowest Price Guarantee
No Sales Tax Outside CA & WY!

Looking for a strong and trustworthy solar kit to meet your off-grid power requirements? The AIMS Power 3840 Watt Solar Kit with 12000 Watt Pure Sine Inverter Charger is the only option. With all the components you need for your off-grid power solution, this all-in-one solar kit is ideal for off-grid cabins, residences, and bigger tiny homes.

When you have access to generator or city power, you may recharge your batteries using the 12000 Watt Pure Sine Inverter's built-in charger. Because the panels are covered in tempered glass, they are protected from all types of weather. You can rely on the PV wiring's strength and lifespan because it is shielded against UV rays, water, ozone, oils, grains, and the elements.

Larger appliances, electronics, tools, and pumps are the best things to power with this solar system because the inverter can handle loads up to 12000 watts. When you acquire a system, a wiring schematic is included to help you with setup and make the connection process simple.

This solar system makes it simple to switch between grid/generator and solar power, giving you the freedom to connect to shore power or a generator for that extra needed power.

Start your off-grid adventure with AIMS Power right away and take advantage of the security that comes with having a dependable and effective off-grid power solution.

Features:

Simple to connect and Easy to Use.
Works with devices up to 12000 watts
Connect to shore power or a Generator for that extra needed Power.
Ideal for off grid cabins, houses, and larger tiny homes

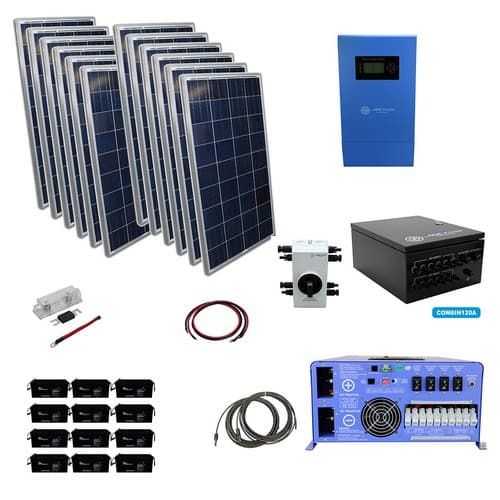

Included in your Kit:

PV330MONO: 330W Monocrystialline Solar Panel (x12)
PVEXT20FT10AWG: 20ft 10AWG PV Male to Female Extension Cable - Extension cables from Panel Array to Combiner Box(x8)
COM6IN120A: 6 String Combiner Box- Solar Array feeds into Combiner Box(x1)
PVEXT100FT10AWG: PV Male and Female Cable - Runs Cables from Combiner Box To Disconnect Switch(x2)
DC1600V32A2IO: Quick Disconnect Switch - Used to quickly cut power(x1)
PVF20FT10AWG: 20ft. 10AWG PV Female Cable - Used to connect Disconnect Switch to Solar Charge Controller(x1)
PVM20FT10AWG: 20ft. 10AWG PV Male Cable -Used to connect Disconnect Switch to Solar Charge Controller(x1)

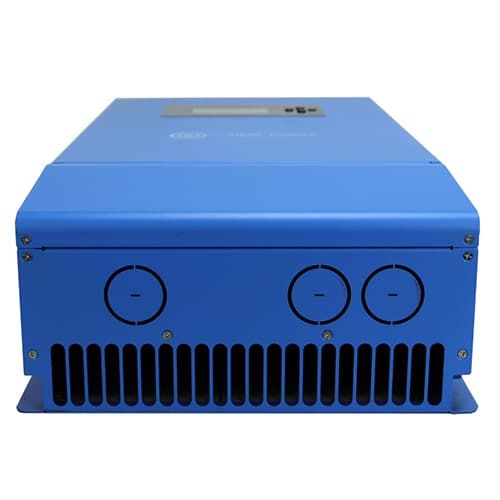

SCC80AMPPT: Solar Charge Controller MPPT - 80A, 12/24/36/48V - Charges battery with solar power(x1)
CBL08FT6AWGC: 8 Ft 6 AWG Red + Black Set Lug-Cut Charge Controller Cable - Connects the Solar Charge Controller to the Battery(set 1)
ANL100KITJ: ANL 100 Amp Fuse + Holder Kit + 6AWG Jumper - Fuse goes between the solar charge controller and the Battery as a safety feature(kit 1)

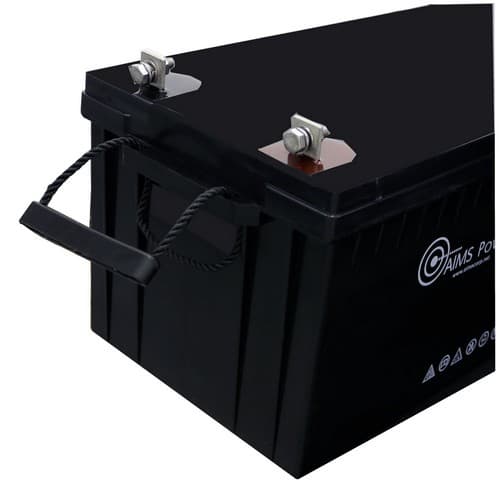

AGM12V200A: Sealed AGM Battery 200aHr 12Vdc (x12)
CBL01FT1/0RED: Battery Bank Cable 1ft - 9 for Series connection for the battery bank and1 for the fuse kit jumper cable(x10)
CBL02FT1/0: 1/0 AWG Red + Black Battery Bank Cables 2ft - Parallel connections for battery bank(x2 Sets)
ANL500KIT: ANL 500 Amp Fuse + Holder Kit - Fuse goes between inverter and Battery as a safety feature(x1 Kit)
CBL08FT1/0: 8ft1/0 AWG Red + Black Power Inverter Cable Set - Battery bank to Inverter(x1)
PICGLFBATS: Low Frequency Battery Sensor - Tape on the negative side of battery near the post and Plug into inverter(x1)
PICOGLF120W48V240VS: 12000W, 24Vdc, 240Vac Power Inverter Charger W/transfer switch Low Freq. Split Phase ETL/CSA Listed(x1)

Description

Features:

Simple to connect and Easy to Use.
Works with devices up to 12000 watts
Connect to shore power or a Generator for that extra needed Power.
Ideal for off grid cabins, houses, and larger tiny homes

Included in your Kit:

PV330MONO: 330W Monocrystialline Solar Panel (x12)
PVEXT20FT10AWG: 20ft 10AWG PV Male to Female Extension Cable - Extension cables from Panel Array to Combiner Box(x8)
COM6IN120A: 6 String Combiner Box- Solar Array feeds into Combiner Box(x1)
PVEXT100FT10AWG: PV Male and Female Cable - Runs Cables from Combiner Box To Disconnect Switch(x2)
DC1600V32A2IO: Quick Disconnect Switch - Used to quickly cut power(x1)
PVF20FT10AWG: 20ft. 10AWG PV Female Cable - Used to connect Disconnect Switch to Solar Charge Controller(x1)
PVM20FT10AWG: 20ft. 10AWG PV Male Cable -Used to connect Disconnect Switch to Solar Charge Controller(x1)
SCC80AMPPT: Solar Charge Controller MPPT - 80A, 12/24/36/48V - Charges battery with solar power(x1)
CBL08FT6AWGC: 8 Ft 6 AWG Red + Black Set Lug-Cut Charge Controller Cable - Connects the Solar Charge Controller to the Battery(set 1)
ANL100KITJ: ANL 100 Amp Fuse + Holder Kit + 6AWG Jumper - Fuse goes between the solar charge controller and the Battery as a safety feature(kit 1)
AGM12V200A: Sealed AGM Battery 200aHr 12Vdc (x12)
CBL01FT1/0RED: Battery Bank Cable 1ft - 9 for Series connection for the battery bank and1 for the fuse kit jumper cable(x10)
CBL02FT1/0: 1/0 AWG Red + Black Battery Bank Cables 2ft - Parallel connections for battery bank(x2 Sets)
ANL500KIT: ANL 500 Amp Fuse + Holder Kit - Fuse goes between inverter and Battery as a safety feature(x1 Kit)
CBL08FT1/0: 8ft1/0 AWG Red + Black Power Inverter Cable Set - Battery bank to Inverter(x1)
PICGLFBATS: Low Frequency Battery Sensor - Tape on the negative side of battery near the post and Plug into inverter(x1)
PICOGLF120W48V240VS: 12000W, 24Vdc, 240Vac Power Inverter Charger W/transfer switch Low Freq. Split Phase ETL/CSA Listed(x1)
