Rich Solar 1200W 24V Complete Solar Kit

Rich Solar 1200W 24V Complete Solar Kit

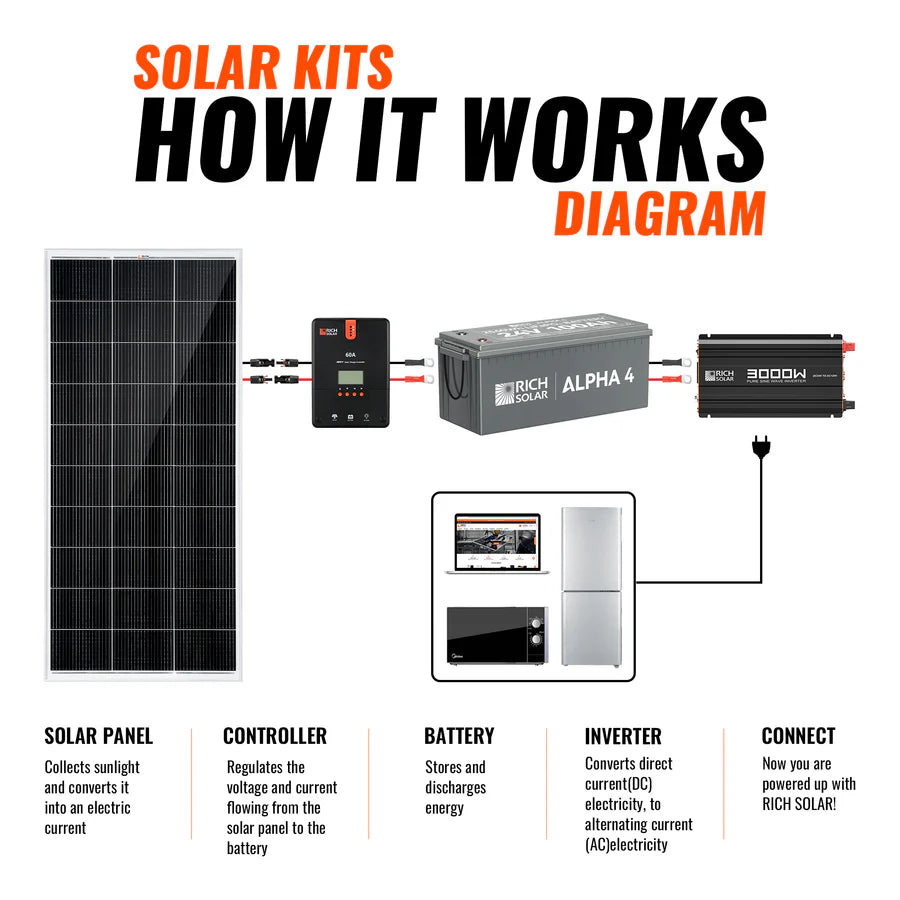

Our 1200W 24V Complete Solar Kit provides all the essential components to harness, store, and utilize solar energy. This comprehensive kit includes six high-efficiency 200W Monocrystalline panels, a 60A MPPT controller, a 3000W 24V inverter, and two ALPHA 4 Lithium batteries. Ideal for installation on your RV or tiny home, this kit equips you with everything you need to embark on your solar adventure with ease.

MEGA 200 Watt Solar Panel

The MEGA 200 Solar Panel offers premium solar production for RVs, boats, cabins, and more. Start on your off-grid solar journey with RICH SOLAR today.

• No. of Panels: 6 x MEGA 200 Watt Solar Panels
• Wattage Per Panel: 200W
• Total Wattage of Panels: 1200W

Features

MEGA 200 Watt Solar Panel

• Generates 10.9 amps of power, charges 12-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.
• Excellent low-light performance even on early mornings, evenings, and cloudy days.
• Built with strong high transmission “anti-reflective” coated tempered glass, and an anodized aluminum frame.
• Fast and easy installation thanks to 14 pre-drilled holes; compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
• 25-year limited warranty for power output; 10-year workmanship warranty.

Alpha 4 24V 100Ah LiFePO4 Battery

• Stay powered in low temps with advanced internal heating tech
• Track battery health in real time from your phone
• Over 5,000 cycles with UL94 V-0 flame-retardant protection
• IP65 waterproof, dustproof, and tested for extreme safety
• Free of toxic metals—safe for you and the planet
• Lightweight design, heavy-duty performance
• ALPHA Series | Backed by a 5-Year Warranty for Long-Term Peace of Mind

NOVA PURE MAX 3000W (3kW) 24V Industrial Pure Sine Wave Inverter

• Electronic overload protection with automatic shutdown.
• Built-in internal backup DC fuse provides added safety.
• Low battery voltage protection with automatic shutdown.
• Over-temperature protection with automatic shutdown.
• Output short-circuit protection.

60 Amp MPPT Solar Charge Controller

• Automatically detects 12V/24V/36V/48V DC system voltages.
• Compatible with various deep cycle battery options: Sealed, Gel, Flooded, and Lithium.
• Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%.
• Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current.
• LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes.
• Features diverse load control; also capable of charging over-discharged lithium batteries.
• Die-cast aluminum design allows for efficient heat dissipation.
  RS232 port for communicating with BT-1 Bluetooth module.

Specifications

MEGA 200 Watt Solar Panel

• Maximum Power(Pmax): 200W
• Maximum Power Voltage(Vmp): 18.4V
• Maximum Power Current(Imp): 10.9A
• Open Circuit Voltage(Voc): 21.8V
• Short Circuit Current(Isc): 11.6A
• Temperature Range: -40 ~ +185°F
• Maximum Series Fuse Rating: 15A
• Weight: 24 lb
• Dimensions: 58.7 x 26.8 x 1.2 in

Alpha 4 24V 100Ah LiFePO4 Battery

4°F to 140°F (-20°C to 60°C)

Battery

• Cell Type: Lifepo4 Battery
• Nominal Voltage: 25.6V
• Nominal Capacity: 100Ah
• Nominal Energy: 2560Wh
• Cycle Life: 5000 Cycles

BMS

• BMS: 100A
• Maximum Charging Current: 100A
• Maximum Continuous Discharge Current: 100A
• Maximum Discharge Current 10 Seconds: 110A

Charge

• Charge Method: CC/CV
• Charge Voltage: 14.4V ± 0.2V
• Recommend Charge Current: 50A (0.5C)

Temperature

• Charge Temperature: 32℉ to 131℉ (0℃ to 55℃)
• Discharge Temperature: -4℉ to 140℉ (-20℃ to 60℃)
• Storage Temperature: 14℉ to 95℉ (-10℃ to 35℃)

Self-heating

• External Power Draw: 100W
• Internal Heating Starts: < 41°F (5°C)
• Internal Heating Stops: > 50°F (10°C)

Others

• Net Battery Weight: 48.5lb
  Size(LxWxH): 20.9x8.1x8.5in
  Housing Material: ABS (Flame Retardant Plastic)
  Protection Class: IP65
  Warranty: 5 Years

NOVA PURE MAX 3000W (3kW) 24V Industrial Pure Sine Wave Inverter

• Model: RS-V3P24
• Rated Voltage: 24V DC
• Continuous Power: 3000W
• Peak Surge: 6000W
• Waveform: Pure Sine Wave
• Input Voltage: 24V DC
• Output Voltage: 120V AC
• Output Frequency: 60 Hz
• Output Efficiency: ＞88%
• AC Output Sockets: 3
• USB Power Port: 5V / 2.1A
• Power Output Control: AC On/Off Switch
• Operating Temperature: 14°F to 122°F
• Dimensions: 18.7 x 9.6 x 4.0 (in) / 475 x 245 x 102 (mm)
• Weight: 12.1 (lb) / 5.5 (kg)

60 Amp MPPT Solar Charge Controller

• Rated Battery Current: 60A
• Rated Load Current: 20A
• Max Solar Input Voltage: 150V(77℉), 145V(-13℉)
• Max Solar Input Power: 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V
• Charge Circuit Voltage Drop: ≤0.26V
• Discharge Circuit Voltage Drop: ≤0.15V
• Operating Temperature: -31°F to 113°F
• Max Terminal Size: <11mm
• Overall Dimensions: 11.2 x 8.1 x 3.7 in
• Net Weight: 7.94 lb

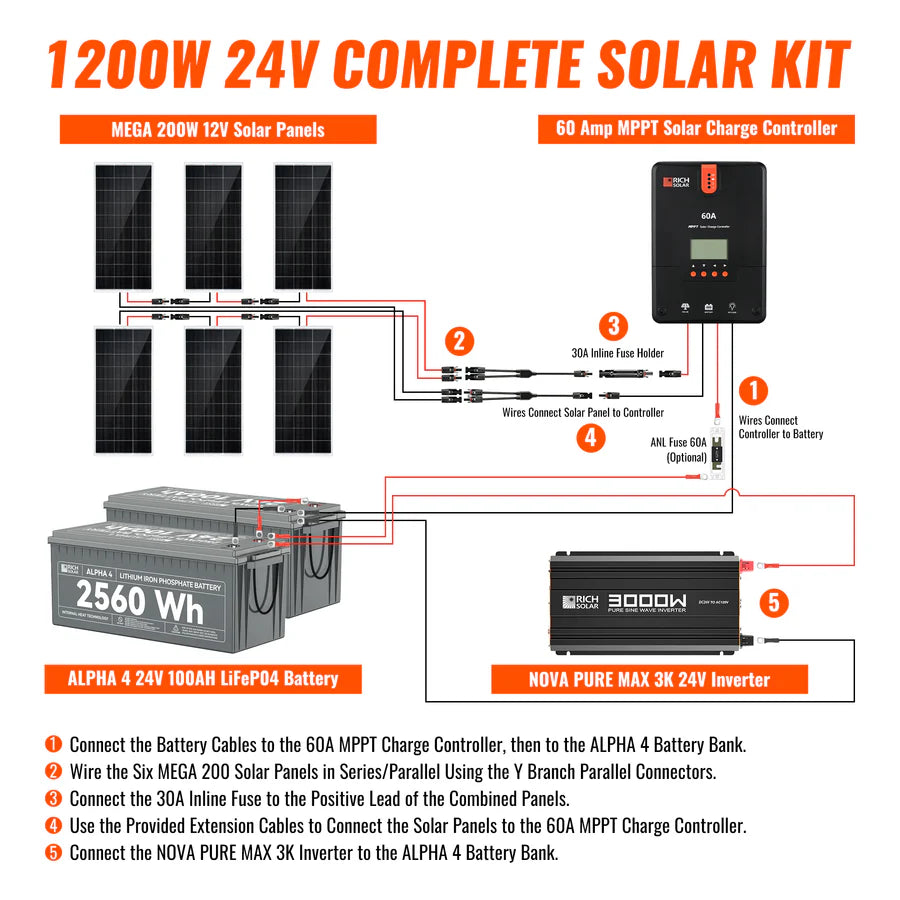

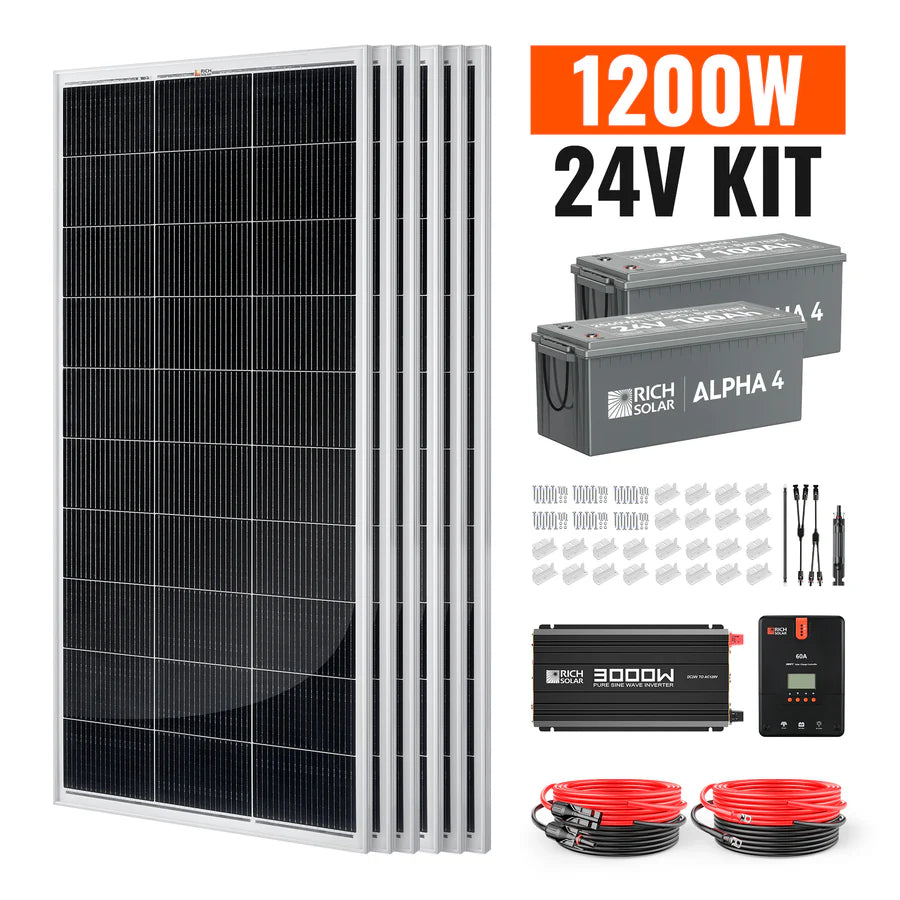

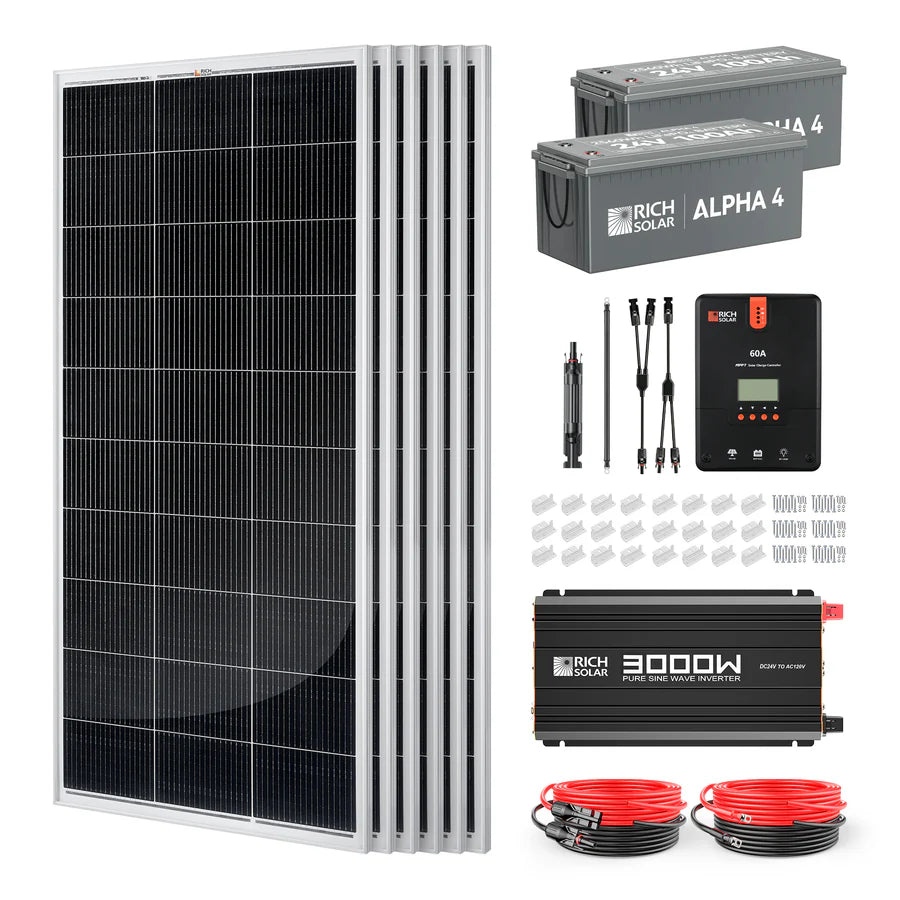

Kit Includes:

• 6 x MEGA 200W 12V Panel (RS-M200)
• 2 x ALPHA 4 Lithium Battery (RS-B241S)
• 1 x NOVA 3000W 24V Inverter (RS-V3P24)
• 1 x 60A MPPT Charge Controller (RS-MPPT60)
• 6 x Z Bracket Set (RS-ZB4C)
• 1 x 30A Inline Fuse Holder (RS-SC30F)
• 1 x Y Branch Parallel Adapter (RS-Y2)
• 1 x 2 Gauge 1 FT Inverter Battery Cable Red (RS-C21R)
• 1 x 2 Gauge 1 FT Inverter Battery Cable Black (RS-C21B)
• 1 x 30' 10 AWG Solar Cable Set (Panel to Controller) (RS-30101)
• 1 x 10' 8 AWG Solar Cable Set (Controller to Battery) (RS-810)
• 1 x 4 AWG 8 FT Battery Cable Set (RS-C48B &amp; RS-C248R)

View and Download

User Manual:

• NOVA 3000W 24V Inverter
