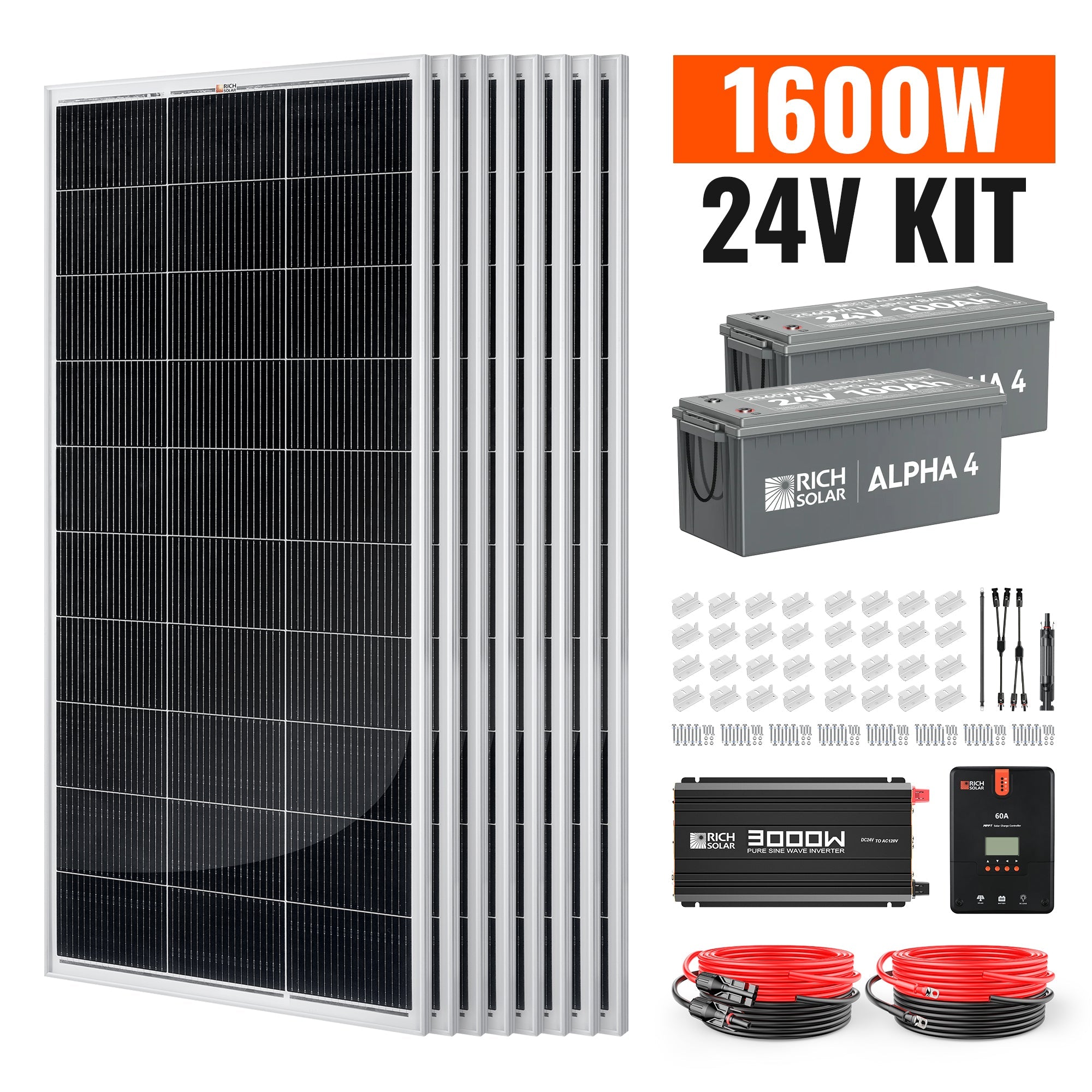

Rich Solar 1600 Watt 24V Complete Solar Kit

Rich Solar 1600 Watt 24V Complete Solar Kit

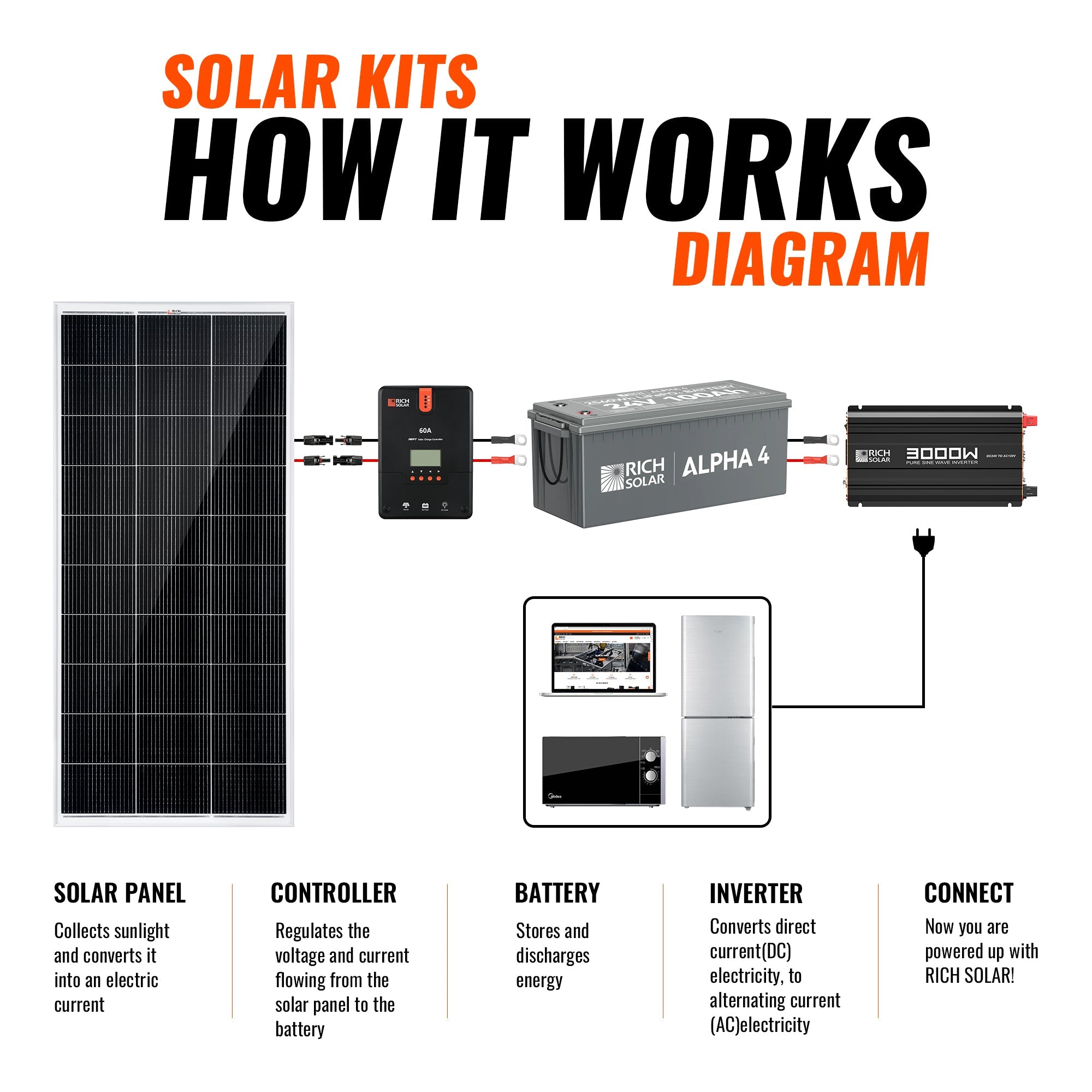

Dreaming of the ultimate solar-powered travel trailer? Our 1600W 24V Complete Solar Kit has everything you need to harness, store, and utilize solar energy efficiently. This kit includes eight high-efficiency 200W Monocrystalline panels, a 60A MPPT controller, a 3000W 24V inverter, and two ALPHA 4 Lithium batteries. Perfect for your RV or tiny home, this kit will launch your solar adventure today!

Features

MEGA 200 Watt Solar Panel

• Generates 10.9 amps of power, charges 12-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.
• Excellent low-light performance even on early mornings, evenings, and cloudy days.
• Built with strong high transmission “anti-reflective” coated tempered glass, and an anodized aluminum frame.
• Fast and easy installation thanks to 14 pre-drilled holes; compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
• 25-year limited warranty for power output; 10-year workmanship warranty.

Alpha 4 24V 100Ah LiFePO4 Battery

• Stay powered in low temps with advanced internal heating tech
• Track battery health in real time from your phone
• Over 5,000 cycles with UL94 V-0 flame-retardant protection
• IP65 waterproof, dustproof, and tested for extreme safety
• Free of toxic metals—safe for you and the planet
• Lightweight design, heavy-duty performance
• ALPHA Series | Backed by a 5-Year Warranty for Long-Term Peace of Mind

NOVA PURE MAX 3000W (3kW) 24V Industrial Pure Sine Wave Inverter

• Electronic overload protection with automatic shutdown.
• Built-in internal backup DC fuse provides added safety.
• Low battery voltage protection with automatic shutdown.
• Over-temperature protection with automatic shutdown.
• Output short-circuit protection.

60 Amp MPPT Solar Charge Controller

• Automatically detects 12V/24V/36V/48V DC system voltages.
• Compatible with various deep cycle battery options: Sealed, Gel, Flooded, and Lithium.
• Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%.
• Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current.
• LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes.
• Features diverse load control; also capable of charging over-discharged lithium batteries.
• Die-cast aluminum design allows for efficient heat dissipation.
  RS232 port for communicating with BT-1 Bluetooth module.

Specifications

MEGA 200 Watt Solar Panel

• Maximum Power(Pmax): 200W
• Maximum Power Voltage(Vmp): 18.4V
• Maximum Power Current(Imp): 10.9A
• Open Circuit Voltage(Voc): 21.8V
• Short Circuit Current(Isc): 11.6A
• Temperature Range: -40 ~ +185°F
• Maximum Series Fuse Rating: 15A
• Weight: 24 lb
• Dimensions: 58.7 x 26.8 x 1.2 in

Alpha 4 24V 100Ah LiFePO4 Battery

4°F to 140°F (-20°C to 60°C)

Battery

• Cell Type: Lifepo4 Battery
• Nominal Voltage: 25.6V
• Nominal Capacity: 100Ah
• Nominal Energy: 2560Wh
• Cycle Life: 5000 Cycles

BMS

• BMS: 100A
• Maximum Charging Current: 100A
• Maximum Continuous Discharge Current: 100A
• Maximum Discharge Current 10 Seconds: 110A

Charge

• Charge Method: CC/CV
• Charge Voltage: 14.4V ± 0.2V
• Recommend Charge Current: 50A (0.5C)

Temperature

• Charge Temperature: 32℉ to 131℉ (0℃ to 55℃)
• Discharge Temperature: -4℉ to 140℉ (-20℃ to 60℃)
• Storage Temperature: 14℉ to 95℉ (-10℃ to 35℃)

Self-heating

• External Power Draw: 100W
• Internal Heating Starts: < 41°F (5°C)
• Internal Heating Stops: > 50°F (10°C)

Others

• Net Battery Weight: 48.5lb
• Size(LxWxH): 20.9x8.1x8.5in
• Housing Material: ABS (Flame Retardant Plastic)
• Protection Class: IP65
• Warranty: 5 Years

NOVA PURE MAX 3000W (3kW) 24V Industrial Pure Sine Wave Inverter

• Model: RS-V3P24
• Rated Voltage: 24V DC
• Continuous Power: 3000W
• Peak Surge: 6000W
• Waveform: Pure Sine Wave
• Input Voltage: 24V DC
• Output Voltage: 120V AC
• Output Frequency: 60 Hz
• Output Efficiency: ＞88%
• AC Output Sockets: 3
• USB Power Port: 5V / 2.1A
• Power Output Control: AC On/Off Switch
• Operating Temperature: 14°F to 122°F
• Dimensions: 18.7 x 9.6 x 4.0 (in) / 475 x 245 x 102 (mm)
• Weight: 12.1 (lb) / 5.5 (kg)

60 Amp MPPT Solar Charge Controller

• Rated Battery Current: 60A
• Rated Load Current: 20A
• Max Solar Input Voltage: 150V(77℉), 145V(-13℉)
• Max Solar Input Power: 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V
• Charge Circuit Voltage Drop: ≤0.26V
• Discharge Circuit Voltage Drop: ≤0.15V
• Operating Temperature: -31°F to 113°F
• Max Terminal Size: <11mm
• Overall Dimensions: 11.2 x 8.1 x 3.7 in
• Net Weight: 7.94 lb

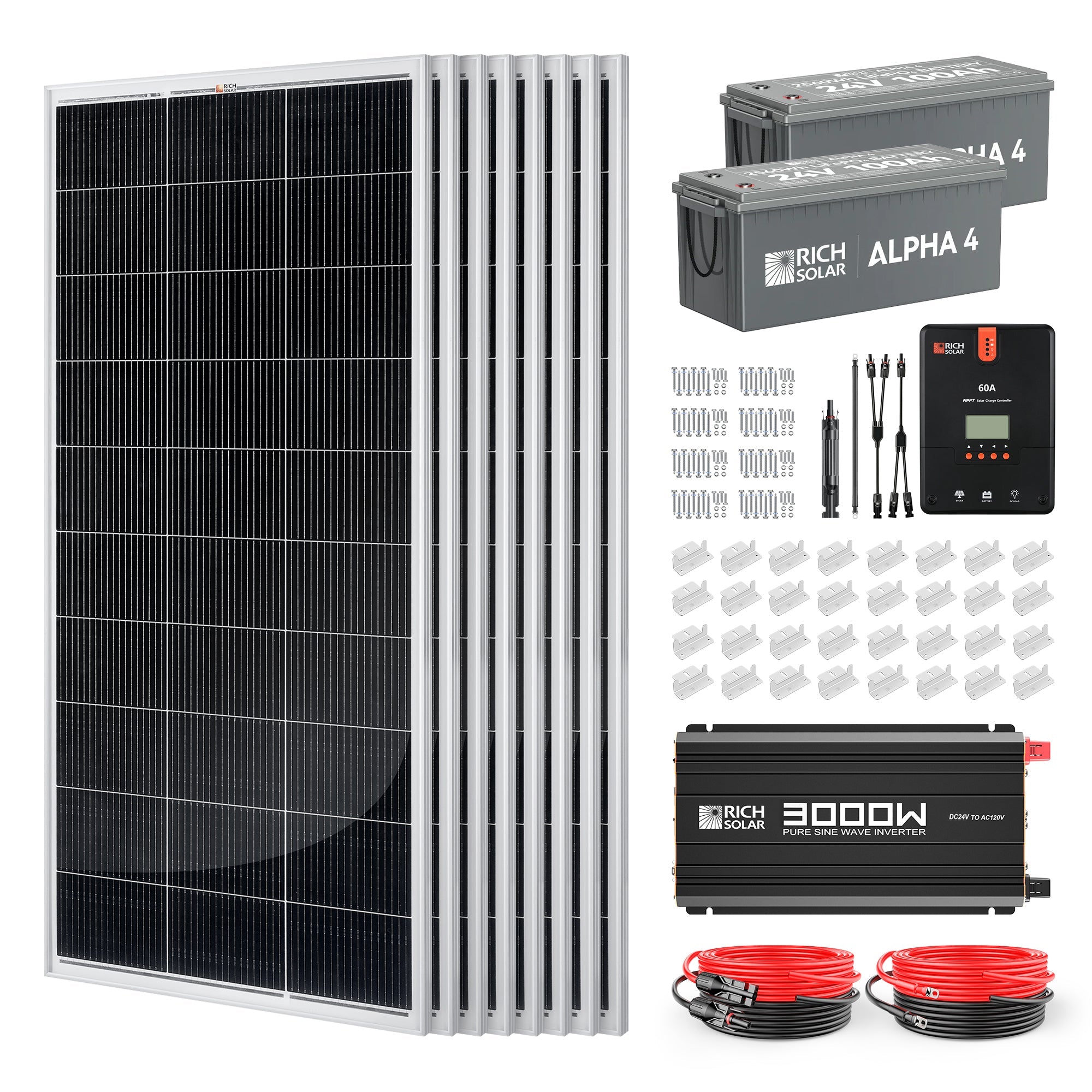

Kit Includes:

• 8 x MEGA 200W 12V Panel (RS-M200)
• 2 x ALPHA 4 Lithium Battery (RS-B241S)
• 1 x NOVA 3000W 24V Inverter (RS-V3P24)
• 1 x 60A MPPT Charge Controller (RS-MPPT60)
• 8 x Z Bracket Set (RS-ZB4C)
• 1 x 30A Inline Fuse Holder (RS-SC30F)
• 1 x Y Branch Parallel Adapter (RS-Y2)
• 1 x 2 Gauge 1 FT Inverter Battery Cable Red (RS-C21R)
• 1 x 2 Gauge 1 FT Inverter Battery Cable Black (RS-C21B)
• 1 x 30' 10 AWG Solar Cable Set (Panel to Controller) (RS-30101)
• 1 x 10' 8 AWG Solar Cable Set (Controller to Battery) (RS-810)
• 1 x 8 4 AWG Battery Cable Set (RS-C48R & RS-C48B)
