Rich Solar 800 Watt Solar Kit

$1,399.99 $1,749.99

You Save: $350.00 21%

.. people are viewing this, and 3 recently purchased it

Option

Rich Solar 800 Watt Solar Kit

Our largest 12V kit contains 4 high efficiency 200W Monocrystalline panels with 18 busbars and our 60A MPPT controller. This kit can be paired with 4 of our 100AH 12V Lithium batteries and is capable of powering off-grid RV solar systems, small RVs, and tiny homes. For a quieter, more peaceful outdoor experience, go solar now and start powering your RV solar setup, boat, or trailer!

Features

MEGA 200 Watt Solar Panel

Generates 10.9 amps of power, charges 12-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.
Excellent low-light performance even on early mornings, evenings, and cloudy days.
Built with strong high transmission “anti-reflective” coated tempered glass, and an anodized aluminum frame.
Fast and easy installation thanks to 14 pre-drilled holes; compatible with standard
Z-brackets, ground mounts, side pole mounts, and tilt mounts.
25-year limited warranty for power output; 10-year workmanship warranty.

60 Amp MPPT Solar Charge Controller

Automatically detects 12V/24V/36V/48V DC system voltages.
Compatible with various deep cycle battery options: Sealed, Gel, Flooded, and Lithium.
Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%.
Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current.
LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes.
Features diverse load control; also capable of charging over-discharged lithium batteries.
Die-cast aluminum design allows for efficient heat dissipation.
RS232 port for communicating with BT-1 Bluetooth module.

Specifications

MEGA 200 Watt Solar Panel

Maximum Power(Pmax): 200W
Maximum Power Voltage(Vmp): 18.4V
Maximum Power Current(Imp): 10.9A
Open Circuit Voltage(Voc): 21.8V
Short Circuit Current(Isc): 11.6A
Temperature Range: -40 ~ +185°F
Maximum Series Fuse Rating: 15A
Weight: 24 lb
Dimensions: 58.7 x 26.8 x 1.2 in

60 Amp MPPT Solar Charge Controller

Rated Battery Current: 60A
Rated Load Current: 20A
Max Solar Input Voltage: 150V(77℉), 145V(-13℉)
Max Solar Input Power: 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V
Charge Circuit Voltage Drop: ≤0.26V
Discharge Circuit Voltage Drop: ≤0.15V
Operating Temperature: -31°F to 113°F
Max Terminal Size: <11mm
Overall Dimensions: 11.2 x 8.1 x 3.7 in
Net Weight: 7.94 lb

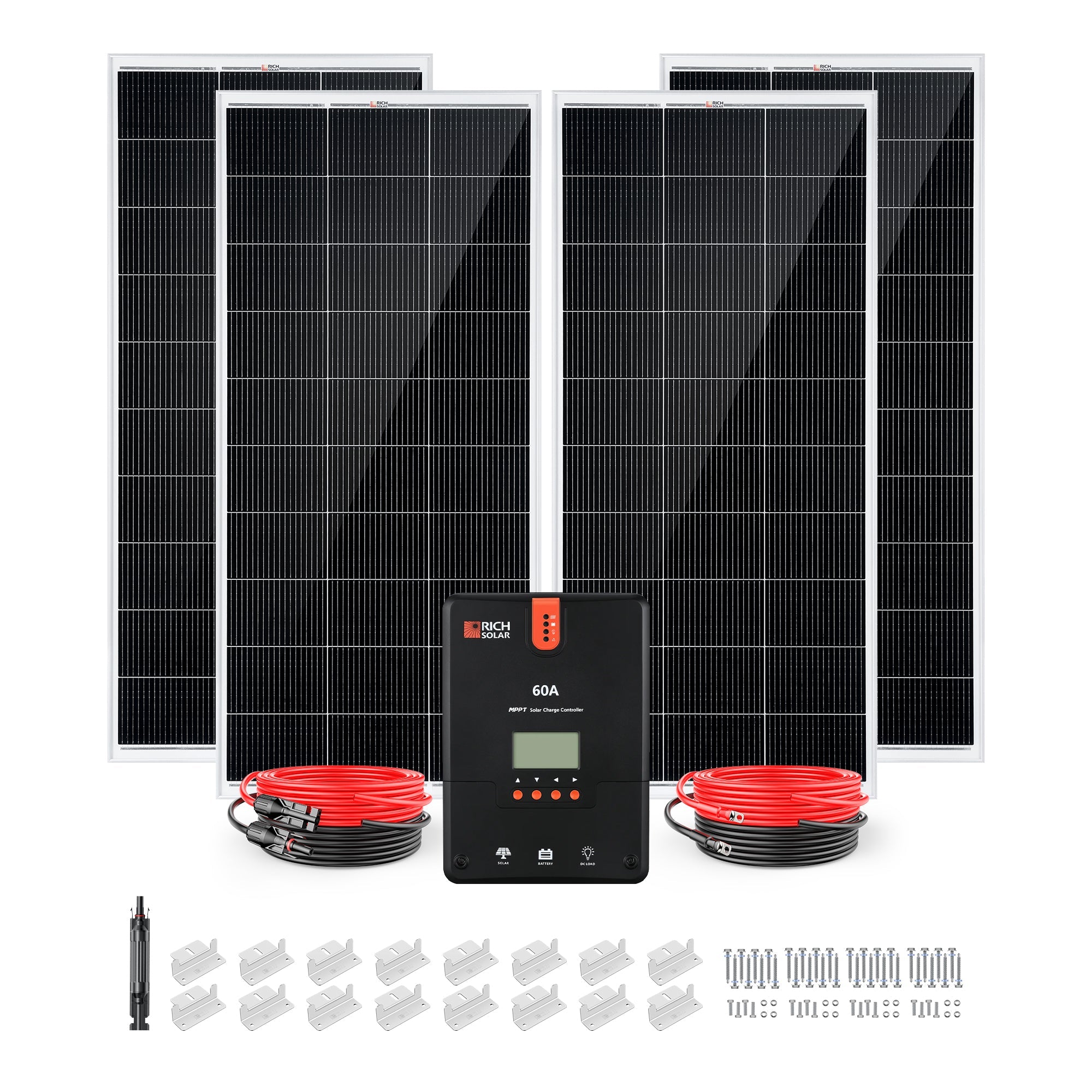

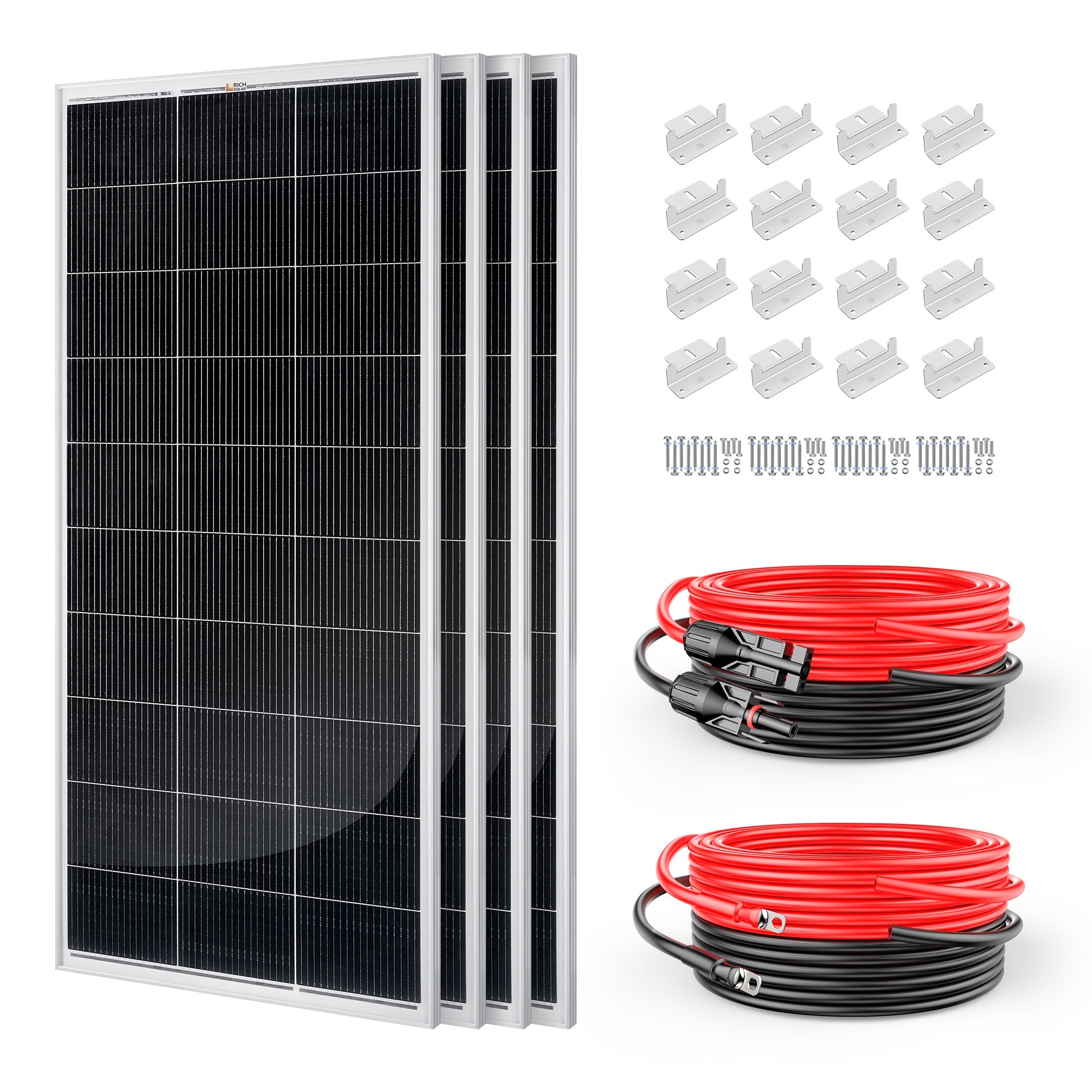

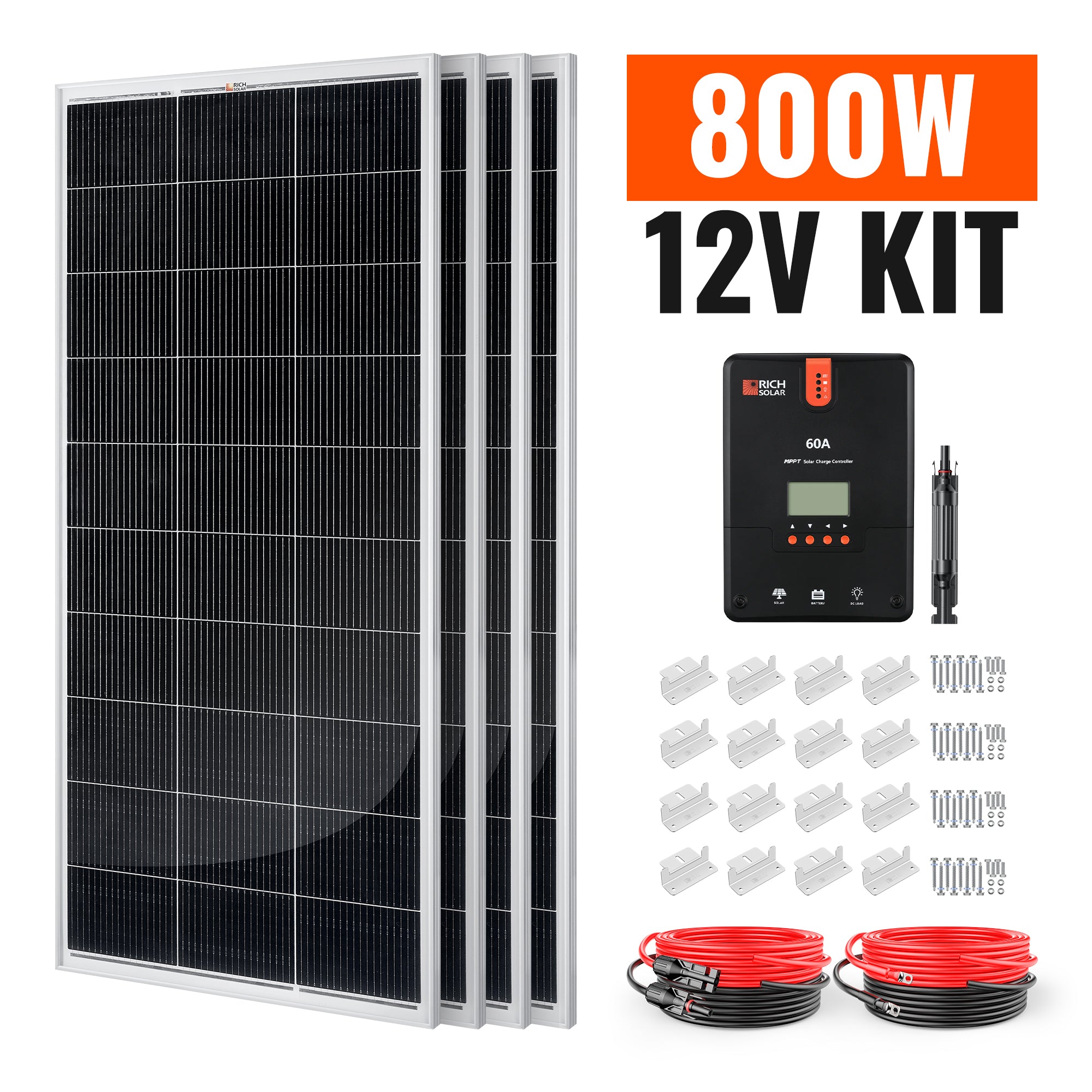

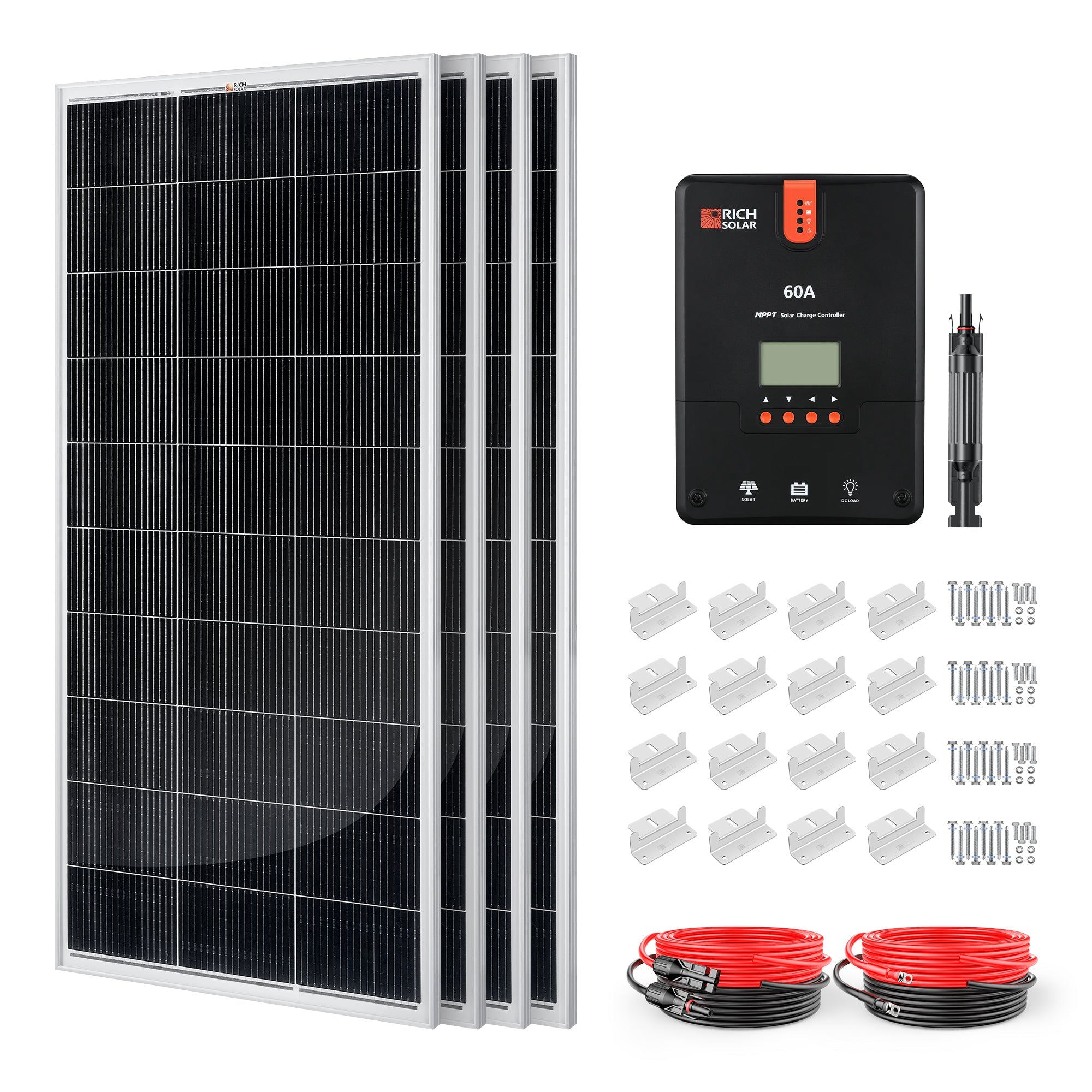

Kit Includes:

4 x 200 Watt Monocrystalline Solar Panel(RS-M200)
1 x 60A MPPT Solar Charge Controller(RS-MPPT60)
1 x 20' #10 Gauge Solar Cable (Red), connects the solar panel to the controller(RS-20101)
1 x 20' #10 Gauge Solar Cable (Black), connects the solar panel to the controller(RS-20101)
1 x 10' #8 Gauge Battery Cable (Red), connects the controller to the battery (RS-810)
1 x 10' #8 Gauge Battery Cable (Black), connects the controller to the battery (RS-810)
4 x Mounting Z Brackets (one set of 4)(RS-ZB4C)
1 x 15A Inline Fuse Holder with Fuse(RS-SC15F)

Description

Rich Solar 800 Watt Solar Kit

Features

MEGA 200 Watt Solar Panel

Generates 10.9 amps of power, charges 12-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.
Excellent low-light performance even on early mornings, evenings, and cloudy days.
Built with strong high transmission “anti-reflective” coated tempered glass, and an anodized aluminum frame.
Fast and easy installation thanks to 14 pre-drilled holes; compatible with standard
Z-brackets, ground mounts, side pole mounts, and tilt mounts.
25-year limited warranty for power output; 10-year workmanship warranty.

60 Amp MPPT Solar Charge Controller

Automatically detects 12V/24V/36V/48V DC system voltages.
Compatible with various deep cycle battery options: Sealed, Gel, Flooded, and Lithium.
Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%.
Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current.
LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes.
Features diverse load control; also capable of charging over-discharged lithium batteries.
Die-cast aluminum design allows for efficient heat dissipation.
RS232 port for communicating with BT-1 Bluetooth module.

Specifications

MEGA 200 Watt Solar Panel

Maximum Power(Pmax): 200W
Maximum Power Voltage(Vmp): 18.4V
Maximum Power Current(Imp): 10.9A
Open Circuit Voltage(Voc): 21.8V
Short Circuit Current(Isc): 11.6A
Temperature Range: -40 ~ +185°F
Maximum Series Fuse Rating: 15A
Weight: 24 lb
Dimensions: 58.7 x 26.8 x 1.2 in

60 Amp MPPT Solar Charge Controller

Rated Battery Current: 60A
Rated Load Current: 20A
Max Solar Input Voltage: 150V(77℉), 145V(-13℉)
Max Solar Input Power: 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V
Charge Circuit Voltage Drop: ≤0.26V
Discharge Circuit Voltage Drop: ≤0.15V
Operating Temperature: -31°F to 113°F
Max Terminal Size: <11mm
Overall Dimensions: 11.2 x 8.1 x 3.7 in
Net Weight: 7.94 lb

Kit Includes:

4 x 200 Watt Monocrystalline Solar Panel(RS-M200)
1 x 60A MPPT Solar Charge Controller(RS-MPPT60)
1 x 20' #10 Gauge Solar Cable (Red), connects the solar panel to the controller(RS-20101)
1 x 20' #10 Gauge Solar Cable (Black), connects the solar panel to the controller(RS-20101)
1 x 10' #8 Gauge Battery Cable (Red), connects the controller to the battery (RS-810)
1 x 10' #8 Gauge Battery Cable (Black), connects the controller to the battery (RS-810)
4 x Mounting Z Brackets (one set of 4)(RS-ZB4C)
1 x 15A Inline Fuse Holder with Fuse(RS-SC15F)
