Rich Solar 200 Watt Complete Solar Kit

Rich Solar 200 Watt Complete Solar Kit

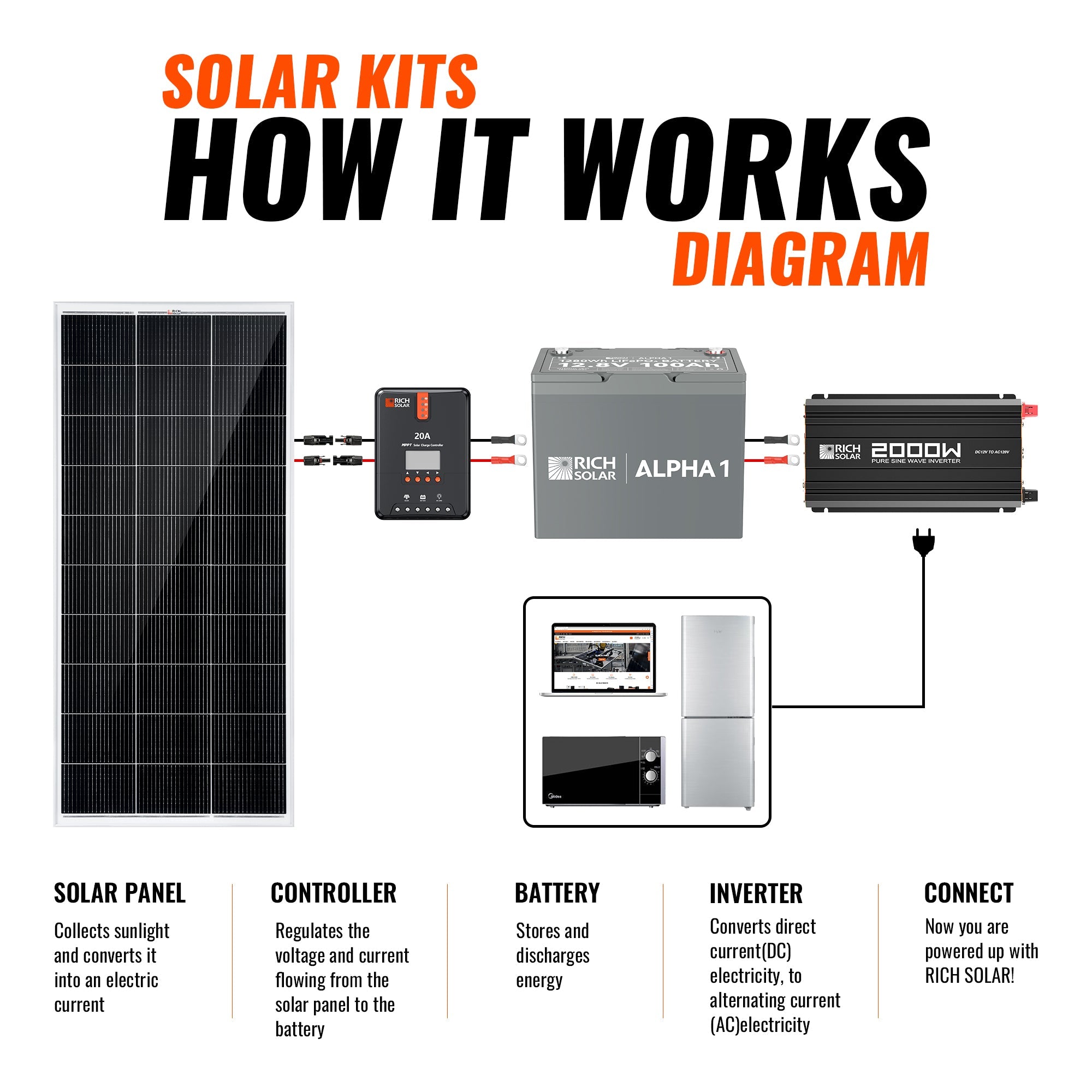

Our 200W 12V Complete Kit provides everything you need to harness, store, and utilize solar energy. This kit features a high-efficiency 200W monocrystalline panel, a 20A MPPT controller, a 2000W 12V inverter, and an Alpha 1 Lithium battery. Perfect for your RV or tiny home, this kit is your gateway to a solar-powered lifestyle. Start your solar adventure today!

Features

MEGA 200 Watt Solar Panel

• Generates 10.9 amps of power, charges 12-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.
• Excellent low-light performance even on early mornings, evenings, and cloudy days.
  Built with strong high transmission “anti-reflective” coated tempered glass, and an anodized aluminum frame.
• Fast and easy installation thanks to 14 pre-drilled holes; compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
• 25-year limited warranty for power output; 10-year workmanship warranty.

ALPHA 1 12V 100Ah LiFePO4 Battery

• Stay powered in low temps with advanced internal heating tech
• Track battery health in real time from your phone
• Over 5,000 cycles with UL94 V-0 flame-retardant protection
• IP65 waterproof, dustproof, and tested for extreme safety
• Free of toxic metals—safe for you and the planet
• Lightweight design, heavy-duty performance
• ALPHA Series | Backed by a 5-Year Warranty for Long-Term Peace of Mind

NOVA PURE 2000W (2kW) 12V Industrial Pure Sine Wave Inverter

• Optimized for 12V DC system voltage, great addition to any off-grid solar power system.
• Offers high-quality waveform with little harmonic distortion.
  Overload protection for both DC input and AC output to prevent damage to the components and the unit.
• Special LED indicators for under-voltage and over-voltage protection, over-temperature protection, over-load protection, and short circuit indication.
  High-speed ventilation fans to help keep the inverter running at a low temperature.
• 120V AC outlets allow for the operation of more than one appliance simultaneously.
  Quiet, no static or humming noises.

20 Amp MPPT Solar Charge Controller

• Automatically detects 12V or 24V DC system voltages
• Compatible with various deep cycle battery options: Sealed, Gel, Flooded, and Lithium
• Innovative MPPT technology with high tracking efficiency of up to 99% and peak conversion efficiency of 98%
• Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current
• LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes
• Features diverse load control; also capable of charging over-discharged lithium batteries
• Die-cast aluminum design allows for efficient heat dissipation
  RS232 port to communicate with BT-1 Bluetooth module

Specifications

MEGA 200 Watt Solar Panel

• Maximum Power(Pmax): 200W
• Maximum Power Voltage(Vmp): 18.4V
• Maximum Power Current(Imp): 10.9A
• Open Circuit Voltage(Voc): 21.8V
• Short Circuit Current(Isc): 11.6A

• Temperature Range: -40 ~ +185°F
• Maximum Series Fuse Rating: 15A
• Weight: 24 lb
• Dimensions: 58.7 x 26.8 x 1.2 in

ALPHA 1 12V 100Ah LiFePO4 Battery

Battery

• Cell Type: LiFePO4 Battery
• Nominal Voltage: 12.8V
• Nominal Capacity: 100Ah
• Nominal Energy: 1280Wh
• Cycle Life: 5000 cycles

BMS

• BMS: 100A
• Maximum Charging Current: 100A
• Maximum Continuous Discharge Current: 100A
• Maximum Discharge Current 10 Seconds: 110A

Charge

• Charge Method: CC/CV
• Charge Voltage: 14.4V ± 0.2V
• Recommend Charge Current: 50A (0.5C)

Temperature

• Charge Temperature: 32°F to 131°F (0°C to 55°C)
• Discharge Temperature: -4°F to 140°F (-20°C to 60°C)
• Storage Temperature: 14°F to 113°F (-10°C to 45°C)

Self-heating

• External Power Draw: 100W
• Internal Heating Starts: < 41°F (5°C)
• Internal Heating Stops: > 50°F (10°C)

Others

• Net Battery Weight: 24.0lb
• Size(LxWxH): 10.2x6.6x8.3in (Group 24 size)Housing Material: ABS (Flame Retardant Plastic)
• Protection Class: IP65
• Warranty: 5 Years

NOVA PURE 2000W (2kW) 12V Industrial Pure Sine Wave Inverter

• Model: RS-V2P12
• Rated Voltage: 12V DC
• Continuous Power: 2000W

• Peak Surge: 4000W
• Waveform: Pure Sine Wave
• Input Voltage: 12V DC

• Output Voltage: 120V AC
• Output Frequency: 60 Hz
• Output Efficiency: ＞88%
• AC Output Sockets: 3
• USB Power Port: 5V / 2.1A
• Power Output Control: AC On/Off Switch
• Operating Temperature: 14°F to 122°F

• Dimensions: 16.1 x 9.6 x 4.0 (in) / 410 x 244 x 102 (mm)
• Weight: 10.1 (lb) / 4.6 (kg)

20 Amp MPPT Solar Charge Controller

• Nominal System Voltage: 12V/24V Auto Recognition
• Rated Battery Current: 20A
• Rated Load Current: 20A
• Max. PV Input Short Current: 25A
• Max. Battery Voltage: 32V
• Max Solar Input Voltage: 100 VDC
• Net Weight: 3.08 lb
• Discharge Circuit Voltage Drop: ≤0.15V
• Overall Dimensions: 8.27 x 5.94 x 2.34 in

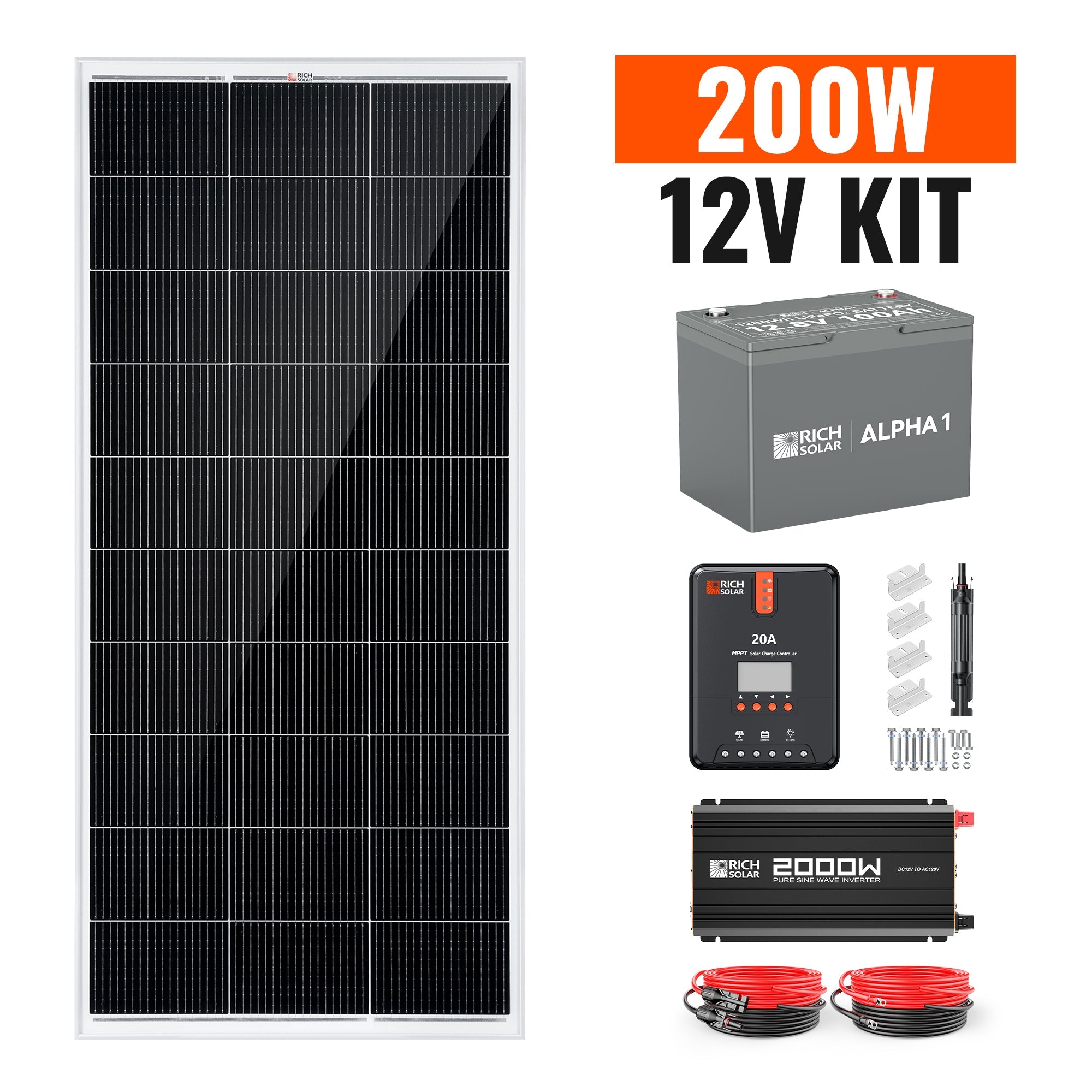

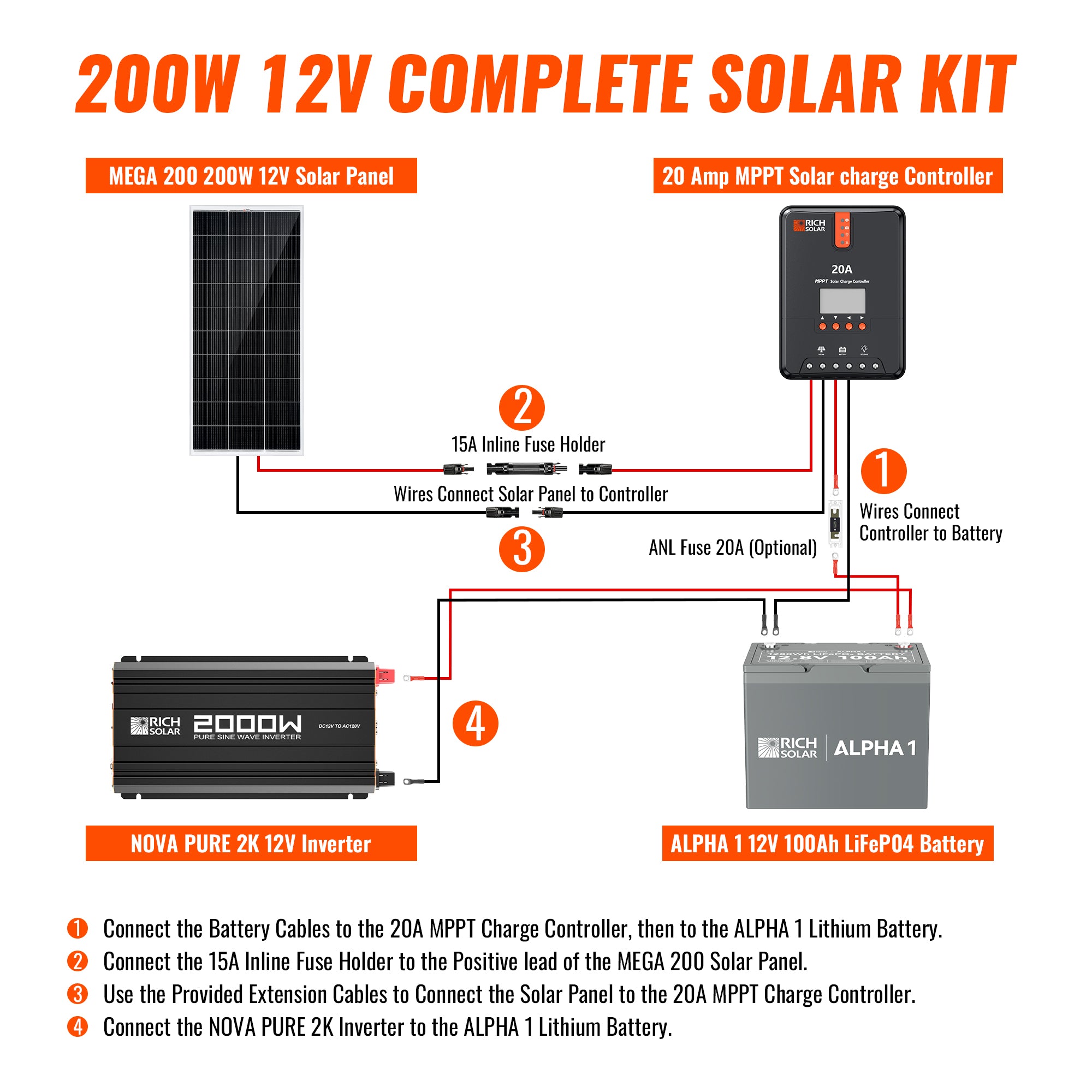

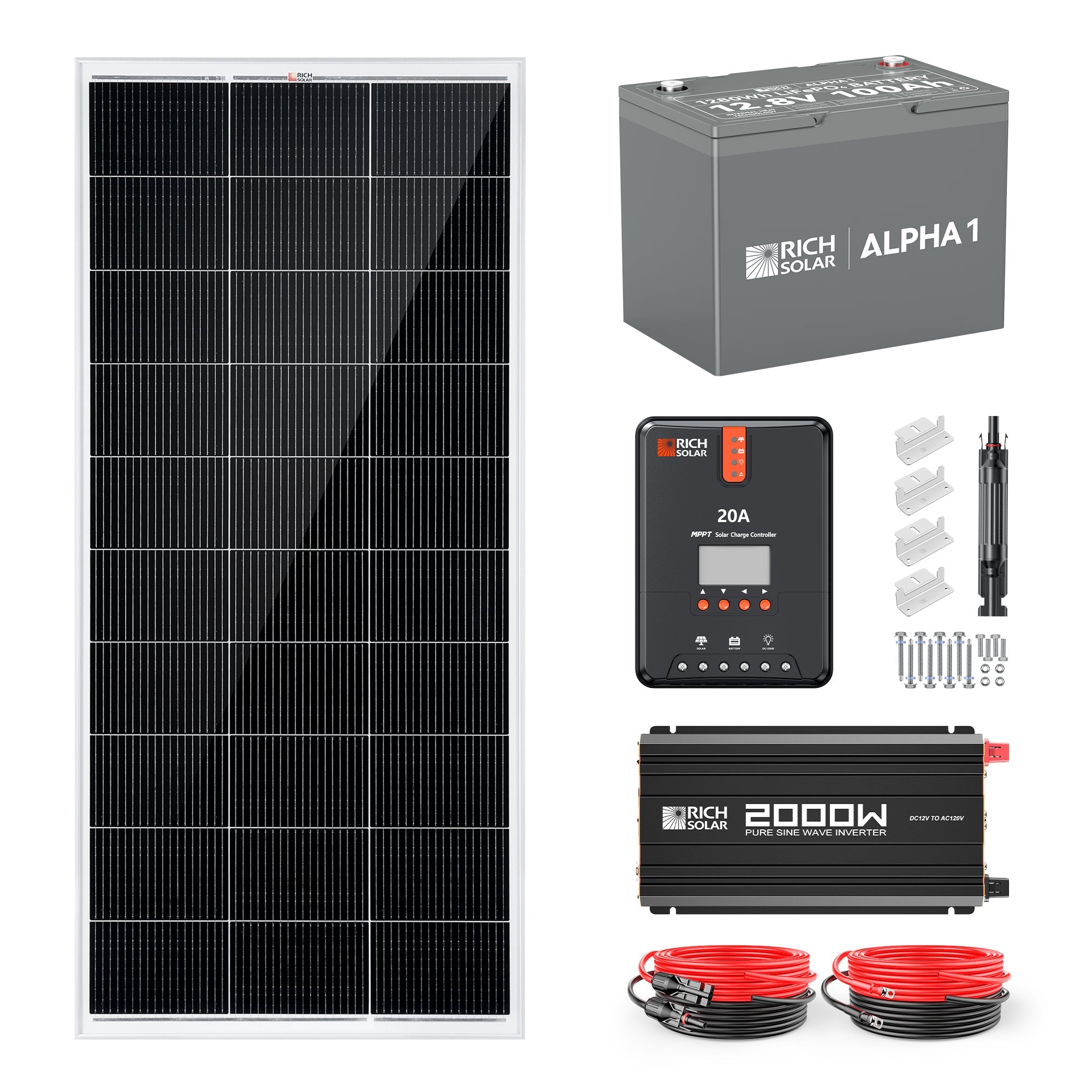

Kit Includes:

• 1 x MEGA 200W 12V Panel (RS-M200)
• 1 x ALPHA 1 Lithium Battery (RS-B121S)
• 1 x NOVA 2000W 12V Inverter (RS-V2P12)
• 1 x 20A MPPT Charge Controller (RS-MPPT20)
• 1 x Z Bracket Set (RS-ZB4C)
• 1 x 15A Solar Panel Inline Fuse Holder (RS-SC15F)
• 1 x 2/0 Gauge 3FT Cable Set (Inverter to Battery) (RS-2/0A3F3)
• 1 x 30' 10 AWG Solar Cable Set (Panel to Controller) (RS-30101)
• 1 x 10' 10 AWG Battery Cable Set (Controller to Battery) (RS-1010)

View and Download

• MEGA 200W Solar Panel
• ALPHA 1 Lithium Battery
