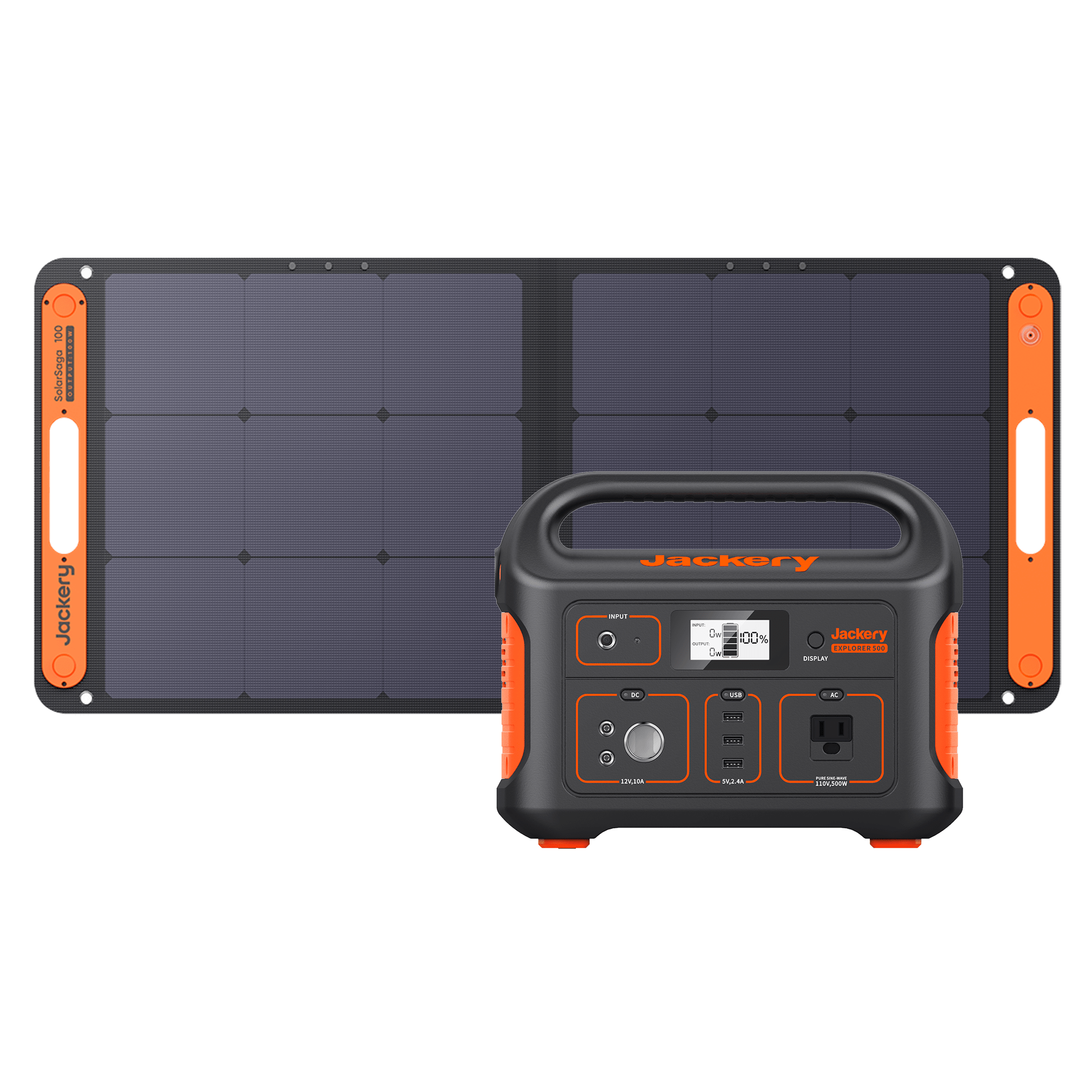

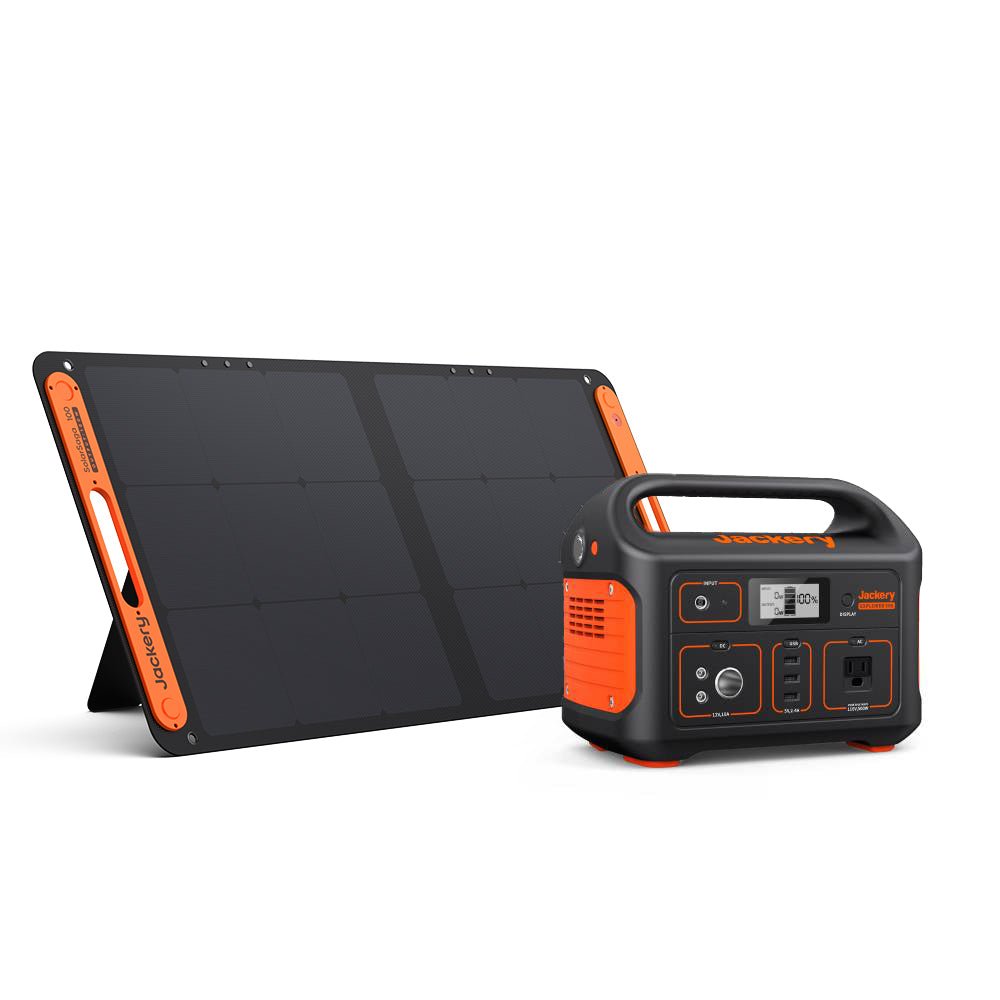

Jackery 500 Portable Solar Generator with SolarSaga 100W

Jackery 500 Portable Solar Generator with SolarSaga 100W

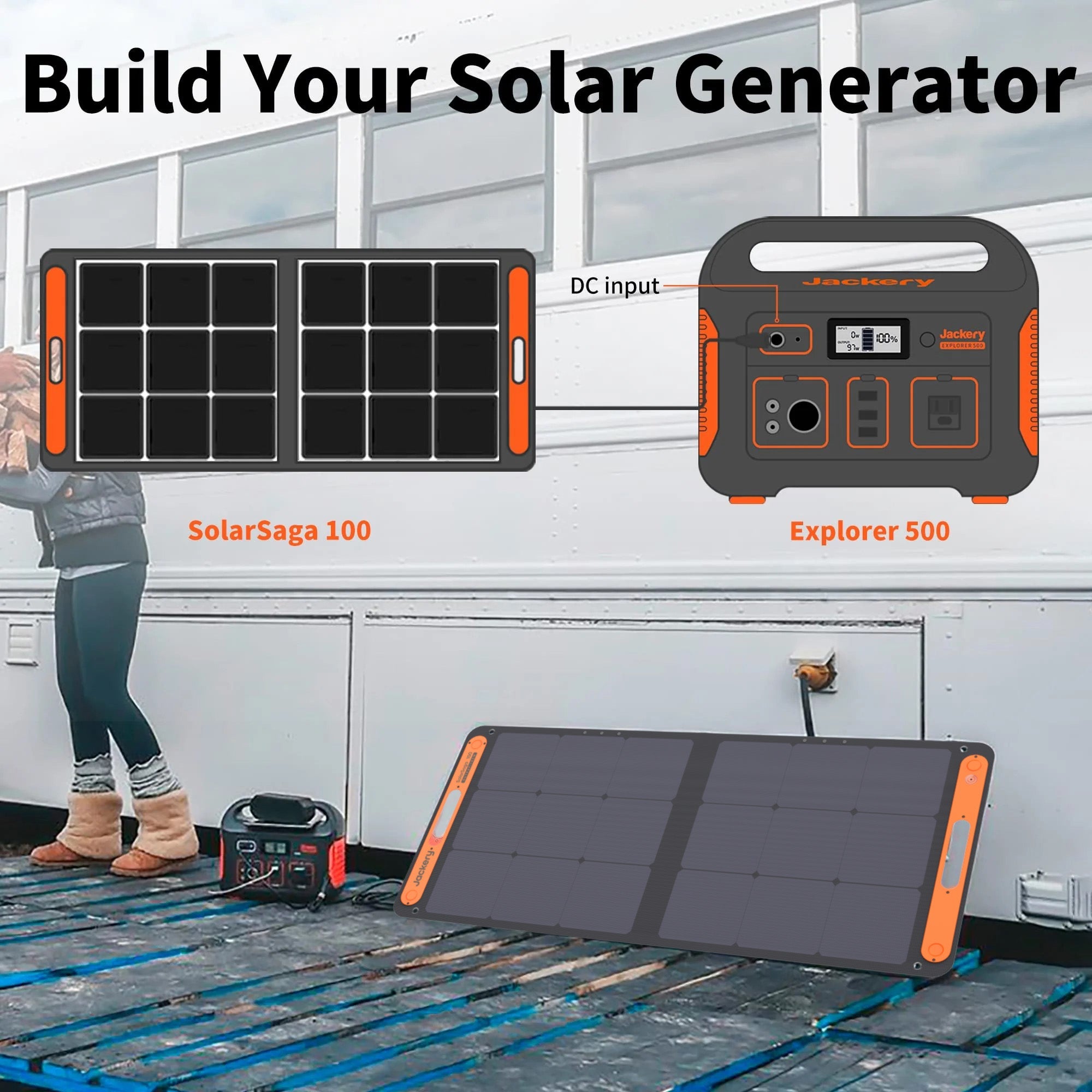

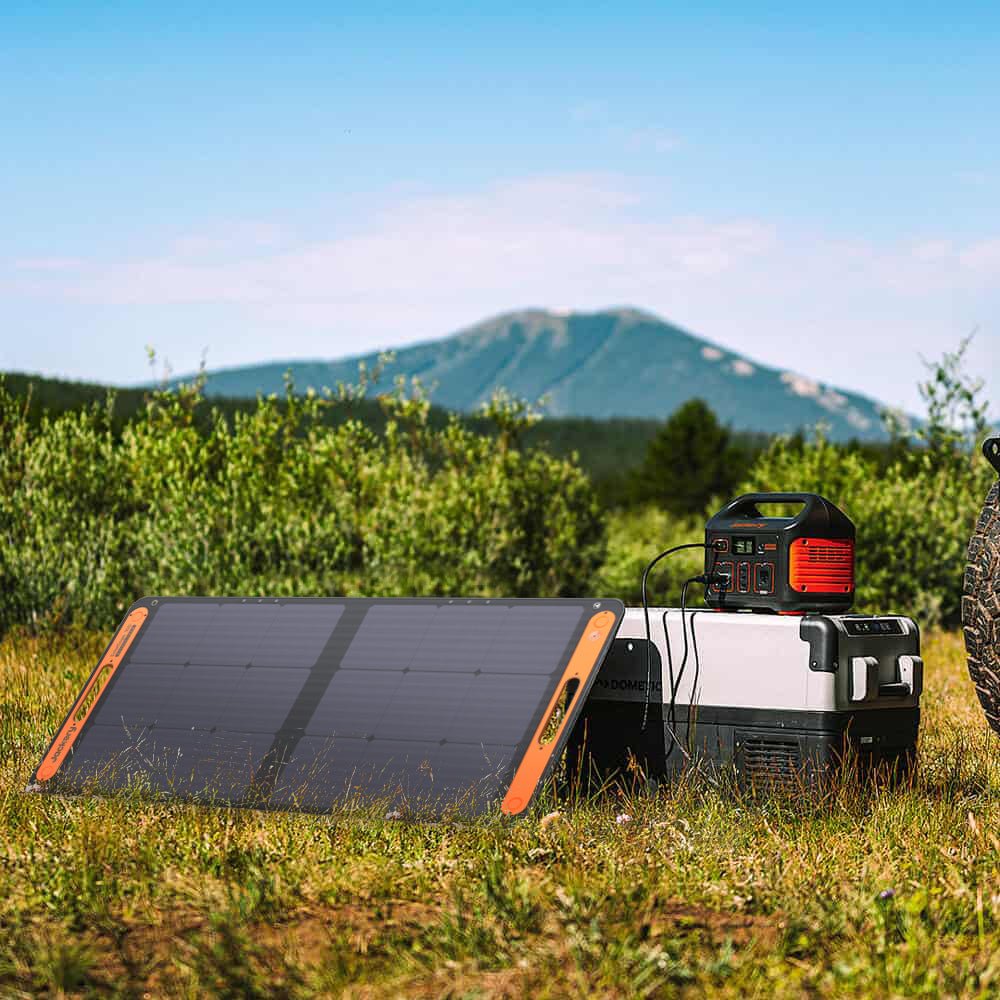

Jackery Solar Generator 500 is a solar solution that combines Explorer 500 portable power station with SolarSaga 100W solar panel. It converts sun energy by solar panels into electrical power and then stores it in the portable power station for later use. This solar generator is a reliable and clean power source for campers, RVs, or as an emergency backup.

Features

Versatile Outdoor Power Supply

Features three USB ports, an AC outlet, and 12V car output - Jackery Solar Generator 500 converts solar energy to provide stable PURE SINE WAVE power to mainstream electronics and small appliances like lamps, laptops, phones, small fridges, CPAP machines, and other devices.

• Phone (18W): 22.6 Charges
• TV (60W): 7.5H
• Blender (300W): 7H
• Space Heater (300W): 1.5H
• Coffee Maker (550W): .8H
• Toaster (650W): 40 mins.

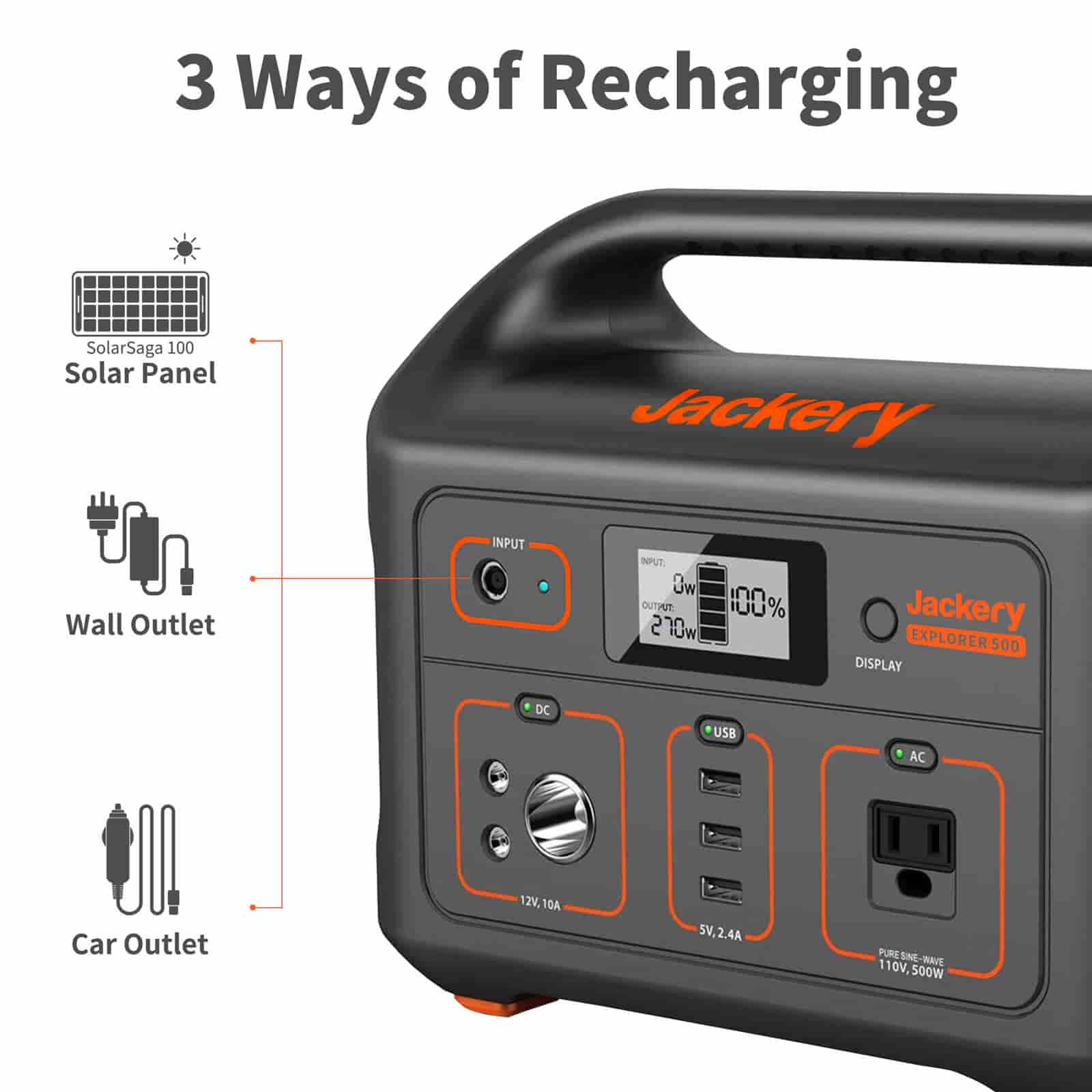

3 Ways to Recharge

• Explorer 500 + 1x SolarSaga 100W
  • Recharging Time: 9.5H
• AC Adapter:
  • Recharging Time: 7.5H
• 12V Car Adapter:
  • Recharging Time: 7.5H

The all-in-one portable power station features three USB ports, a 12V car output, and an AC outlet to provide stable power to the appliances. You can charge the power station using three different methods: solar panels, a car outlet, and an AC adapter.

Safe and Solid for Indoor and Outdoor

Emissions-free energy source and reliable battery management system make Explorer 500 safe even for indoor use. Made from durable material, the solar system is temperature resistant at high temperatures. The operating temperature range of the Explorer 500 power station is 14-104℉ (-10-40℃), and SolarSaga 100 is 14-149F (-10-65℃).

Compact but Powerful

Same size as a basketball, the Explorer 500 is easy to carry with its solid handle, making it a compact and reliable choice for camping, road-trips, RV, and home backup scenarios. The SolarSaga 100-watt solar panel weighs only 9.1 lbs - it's lightweight, foldable, and portable, featuring an easy-carry handle.

Meet the Strong, Silent Solar Generator

Unlike traditional gas generators, a quiet home generator won't disturb your sleep. Solar Generator 500 produces less than 37.9dB: a quiet generator for camping or RV and is a great outdoor living investment.

Low Maintenance and Easy to Use

The lightest and most portable Jackery Solar Generator 500 is easy to maintain. All you need to do is wipe the SolarSaga solar panels and Explorer Power Station with a clean cloth to improve efficiency and harness the power of free renewable energy. Connect the solar panel to Explorer 500, and you'll a portable solar system ready in 60 seconds!

Waterproof Solar Panels for Outdoors

Foldable solar panels are dustproof and waterproof, making them ideal for cold and humid weather conditions. The high-temperature resistance of the solar panels ensures you leverage the power of solar energy even during extremely hot conditions. The SolarSaga 100w solar panel operating usage temperature range is 14-149F (-10-65℃).

Specifications

Explorer 500 Portable Power Station

General

• Weight: 13.3 lbs (6 kg)
• Dimensions: 11.8 x 7.6 x 9.5 in / 30 x 19.2 x 24.2 cm
• Charge Temperature: 32~104 °F (0~40°C)
• Discharge Temperature: 14℉~104℉(-10°C~40°C)
• Warranty: 3+2 Years

Battery

• Capacity: 24Ah / 21.6V (518.4 Wh)
• Cell Chemistry: Lithium-ion
• Cycle Life: 500 cycles to 80%+ capacity

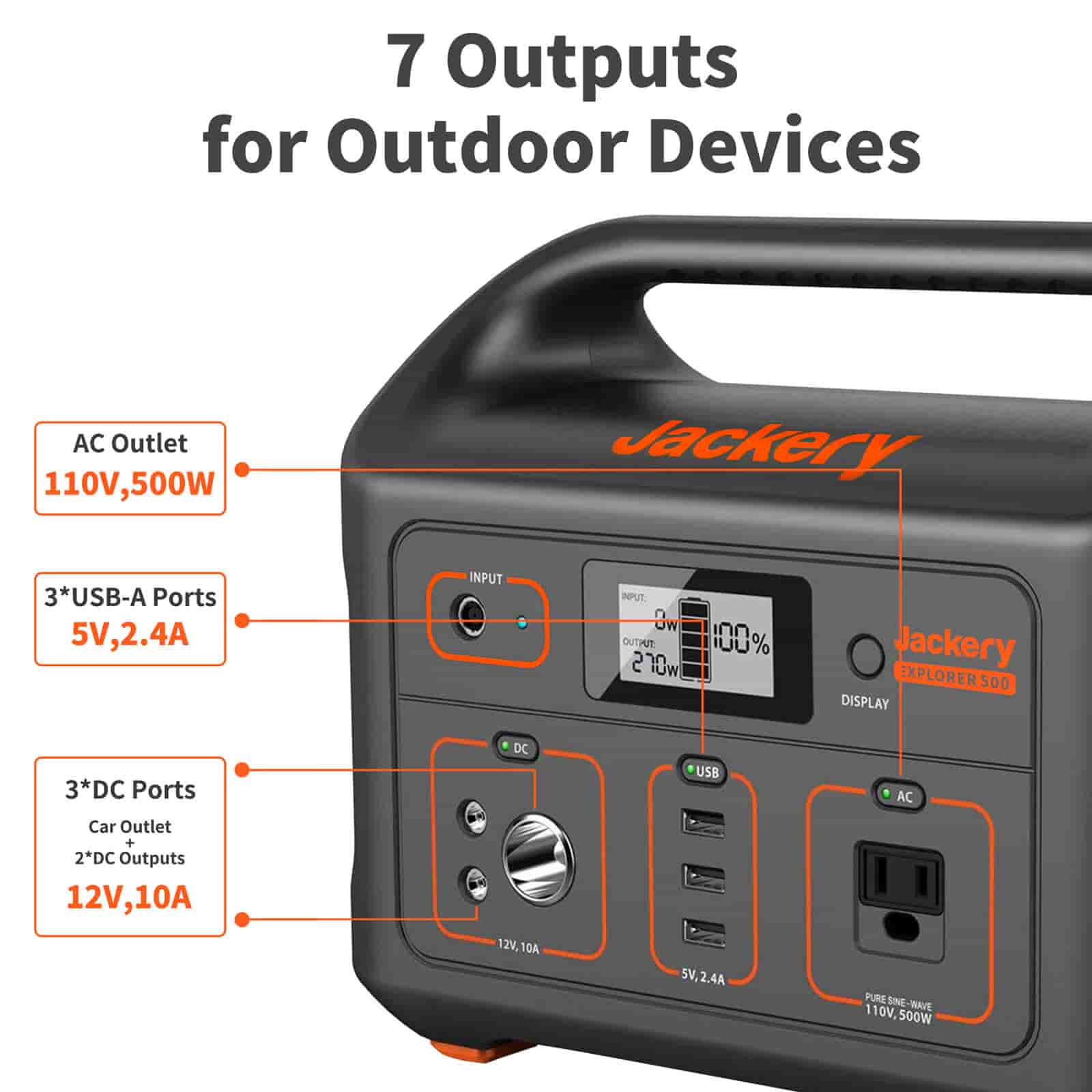

Output Ports

• AC Output: 110V~ 60Hz, 4.54A
• AC Total Output: 500W max continuous, 1000W surge peak
• DC Output: (2x) 12V⎓7A
• USB-A Output: (3x) 5V⎓2.4A (Total 30W max)

Input Ports

• DC Input: 12-15V⎓7A; 15-30V⎓3.75A

Charging Time

• AC Adapter: 7.5 Hours
• Car Adapter (12V): 7.5 Hours
• Solar Charging: 9 Hours

SolarSaga 100W Solar Panel

General

• Weight: 7.94 lbs ± 0.66 lbs (3.6 kg ± 0.3 kg)
• Protection Class: Class II (Against Electric Shock)
• Waterproof: IP68
• Operating Temperature Range: -4~149°F (-20~65℃)
• Warranty: 3+2 Years

Ports

• USB-A Output: 5V⎓2.4A
• USB-C Output: 5V⎓3A

Solar

• Maximum System Voltage: 60V
• Maximum Reverse Current: 15A
• Bifaciality Coefficient (Back/Front): Pmax >30%, Voc >95%, Isc >32%
• Voltage Temperature Coefficient: -0.268%/°C
• Power Temperature Coefficient: -0.29%/°C

STC (1000W/㎡, 25℃, AM 1.5)

• Peak Power (Pmax): 100W ±5W
• Open Circuit Voltage (VOC): 24.8V ±5%
• Short Circuit Current (Isc): 5.4A ±5%
• Power Voltage (Vmp): 20.0V ±5%
• Power Current (Imp): 5.0A ±5%

BNPI (Front 1000W/㎡, Rear 135W/㎡, 25°C, AM 1.5)

• Peak Power (Pmax): 104W ±5W
• Open Circuit Voltage (Voc): 25V ±5%
• Short Circuit Current (Isc): 5.8A ±5%
• Power Voltage (Vmp): 20.1V ±5%
• Power Current (Imp): 5.2A ±5%

Dimensions

• Folded: 24.0 x 21.7 x 1.4 in (610 x 552 x 35 mm)
• Unfolded: 48.03 x 21.73 x 0.79 in (1220 x 552 x 20 mm)

What's Included?

Product Video

View and Download

• Jackery SolarSaga 100W Solar Panel - 587H

• Jackery Explorer 500 User Manual

Frequently Asked Questions

Q: What devices can Explorer 500 power?

• A:  Please note that the AC output port can only charge/power devices that operate at less than 500-Watt. Once exceeding, the Explorer 500 will shut off automatically. Please refer to your device specification before purchase.

Q: How to know the working times for my device?

• A:  Working time = 500Wh* 0.85 / operating power of your device.
• For reference, assuming power consumption of your device is 60W (might be a box fan), working time will be 500Wh*0.85/60w=7hrs (rough calculated) .
  Please note: actual power consumption varies from different usages, please consult Jackery for better purchase decision.

Q: How long does it take to full charge this power station?

• A:  Within 7.5 hours from an AC wall outlet; Also another two recharge backup choices for your convenience, recharge from car port around 7.5 hours, and around within 9.5 hours from Jackery Saga 100W solar panel (Sold Separately).

Q: How do I know if my Explorer 500 is charged?

• A:  To check the charge level of the Explorer 500, refer to the LCD Battery Display.

Q: What type of battery is in an Explorer 500?

• A:  Explorer 500 contains a battery pack which consists of an array of cylindri cal 18650 lithium-ion battery cells with high energy density.

Q: Is the solar panel waterproof?

• The Saga 100W is not waterproof. To maximize the lifespan of the module,Please don’t make it get wet.

Q: Can the Explorer 500 be charged while using?

• A:  Yes, you can use the Explorer 500 to charge devices, while it's being re-charged at the same time.

Q: How to clean the solar panel surface?

• We mentioned this point in the manual. Please use a soft cloth to remove the dust and dirt on the surface. Use a damp cloth to wipe the surface of the solar module to remove any remaining dust or dirt. Any guano or other adhesive should be removed as soon as possible from the solar surface to avoid a reduction in performance.

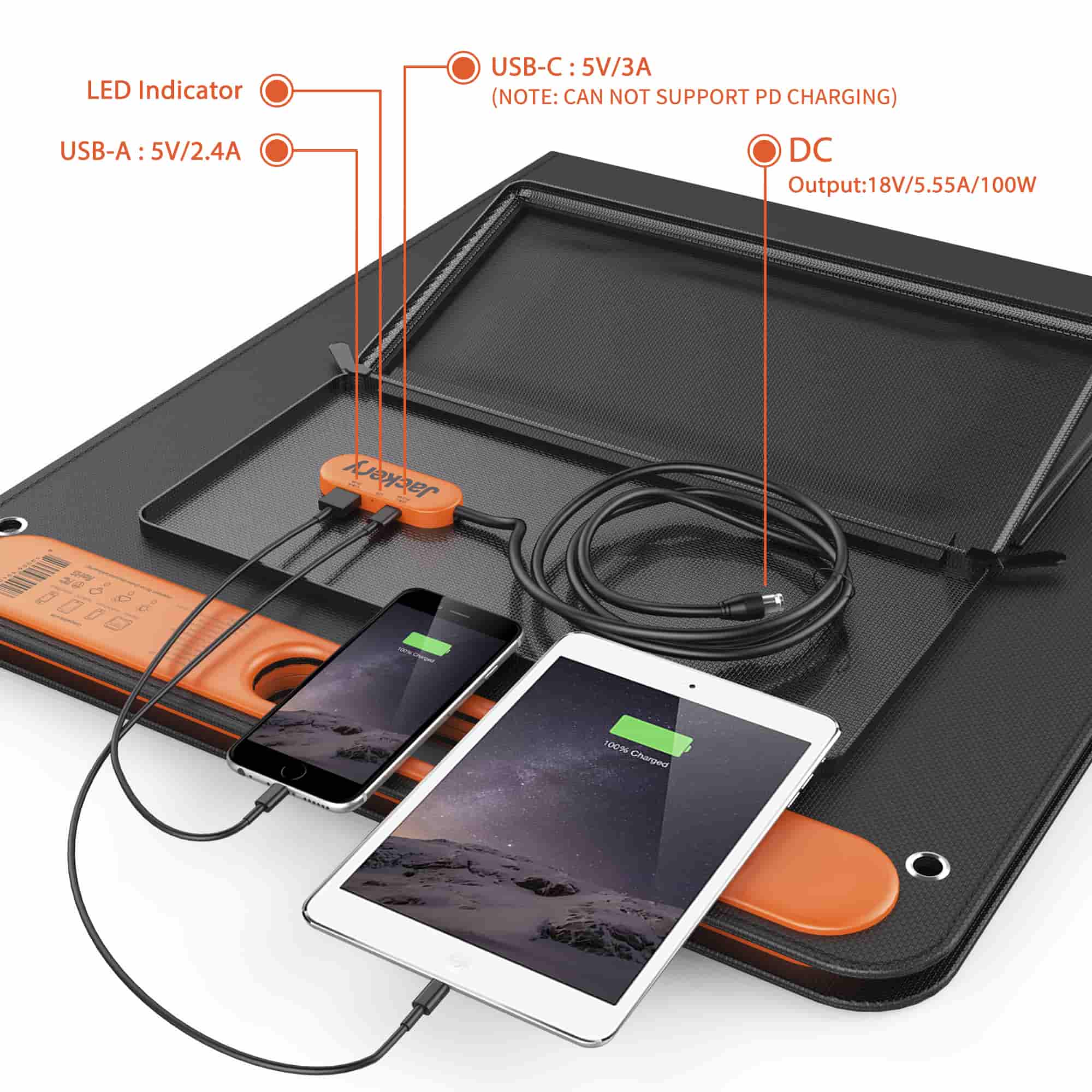

Q: Can the solar panel charge smartphones and tablet?

• Yes, the 100W solar panel has 1* USB-C(5V,3A) output port and 1* USB-A(5V, 2.4A) output port
