Rich Solar 13000W Complete Off-Grid Solar Kit

Rich Solar 13000W Complete Off-Grid Solar Kit

Everything you need to go completely Off-Grid! Best value on the market!

Features

NOVA 6548 6500 Watt (6.5kW)

Power for Off-Grid

• 6500W Continuous Output
• 80-140 VAC Selectable Voltage
• Parallel up to 6 Units
• Performance Components

13000 VA High Surge Capacity

• Overload Protection
• Over Temperature Protection
• Advanced Configurability

Built-in Wi-Fi for mobile monitoring (Android/iOS App available)

• Supports USB On-the-Go function

Reliability & Safety

• UL Certification

5120Wh Server ALPHA 5 PRO

LiFePO4 Lithium Battery

• Certification: UL1973, UL9540A, FCC
• 7,000 Deep Cycles Life
• 5120 Watt Hours Energy
• 100A Continuous Charge Current

Performance Components

• Compatible with multiple brands of inverters
• Low maintenance
• Over charging or discharging protection
• Overcurrent & short circuit protection

Advanced Configurability

• Parallel up to 15 Batteries
• Connect in Parallel for Larger Capacity
• With Sophisticated Battery Management System (BMS)

Reliable & Warranty

• 10 Years Lifespan

MEGA 335 PRO: 335 Watt Solar Panel

• Generates 11.5 amps of power, charges 24-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.
• Excellent low-light performance even on early mornings, evenings, and cloudy days.
  Built with strong high transmission “anti-reflective” coated tempered glass and an anodized aluminum frame.
• Fast and easy installation thanks to 14 pre-drilled holes that are compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
• 25-year power output warranty and a 10-year workmanship warranty.

MEGA 400: 400 Watt Solar Panel

• 10-busbar solar cell configuration
  Mono PERC Technology
• Lightweight anodized aluminum frame
• High-transmission, AR (anti-reflective) Coated Tempered Glass
• Plug-and-play junction box
• Industry-standard quick-connect cables work in series or parallel
• Certified to withstand challenging environmental conditions
• Excellent low-light performance on cloudy days, mornings, and evenings

MEGA 410: 410 Watt Solar Panel

• 10-busbar solar cell configuration
• Mono PERC Technology
• Lightweight anodized aluminum frame
• High Transmission, AR (anti-reflective) Coated Tempered Glass
• Plug-and-play junction box

• Industry-standard quick-connect cables work in series or parallel
• Certified to withstand challenging environmental conditions
• Excellent low-light performance on cloudy days, mornings, and evenings

Specifications

NOVA 6548 6500 Watt (6.5kW)

Model: RS-H6548

• Rated Inverter Power: 6500VA/6500W
• Parallel Capability: Yes, 6 units

Input

• Voltage: 120 VAC
• Selectable Voltage Range: 90–140 VAC (For Computers), 80–140 VAC (For Home Appliances)
• Frequency Range: 50 Hz/60 Hz (Auto Sensing)

Output

• AC Voltage Regulation (Batt. Mode): 120 VAC ± 5%
• Surge Power: 2* rated power for 5 seconds
• Efficiency (Peak): 91%
• Transfer Time: 10 ms (For Personal Computers), 20 ms (For Home Appliances)
• Waveform: Pure Sine Wave
• Optional DC Voltage: 12 VDC ± 7%, 100W

Battery

• Battery Voltage: 48 VDC
• Float Charging Voltage: 54 VDC
• Overcharge Protection: 66 VDC

Solar Charger & AC Charger

• Solar Charger Type: MPPT
• Maximum PV Array Power: 8000W (4000W x 2)
• MPPT Operating Voltage Range: 90 ~ 230 VDC
• Maximum PV Array Open Circuit Voltage: 250 VDC
• Maximum Solar Charge Current: 120A
• Maximum AC Charge Current: 120A
• Maximum Charge Current: 120A

Physical

• Dimensions (D X W X H): 5.8 x 17.0 x 21.8 in
• Net Weight: 40.6 lb
• Communication Interface: USB/RS232/RS485/WiFi/Dry-contact

Operating Environment

• Humidity: 5% to 95% Relative Humidity (Non-condensing)
• Operating Temperature: -14°F to 104°F
• Storage Temperature: 5°F to 140°F

Standard

• Compliance Safety: UL 1741 by TUV

5120Wh Server ALPHA 5 PRO

Electrical Specifications

• Nominal Voltage: 51.2V
• Nominal Capacity: 100Ah
• Minimum Capacity: 99.5Ah
• Nominal Energy: 5120Wh

Operating Specifications

• Charging Voltage: 56V
• Discharging Cutoff Voltage: 44.8V
• Maximum Charging Current: 100A
• Continuous Charge Current: 100A
• Maximum Discharge Current: 100A

Physical Specifications

• Battery Dimensions: 17.7"L x 17.8"W x 5.2"H
• Battery Weight: 99.2 lb
• Server Rack Dimensions: 27.5"L x 27.5"W x 44.1"H (excludes wheel height)
• Server Rack Weight: 224.9 lb

BMS Operation

• Operation Voltage: 43.2~58.4V
• Maximum Charging Current: 100A
• Maximum Discharging Current: 100A
• Maximum Charge Voltage (CC/CV): 57.6V
• Overcharge Protection Voltage (Battery): 58.4V
• Overcharge Protection Release Voltage (Battery): 54V
• Over Discharge Protection Voltage (Battery): 43.2V
• Over Discharge Protection Release Voltage (Battery): 47.2V
• Over Discharge Primary Charge Overcurrent Protection Value: 110A
• First Stage Charge Over Current Delay: 1s
• Primary Discharge Overcurrent Protection Value: 110A
• Primary Discharge Overcurrent Protection Delay: 1s
• Secondary Discharge Overcurrent Protection Value: 150A
• Secondary Discharge Overcurrent Protection Delay: 500ms

Temperature Performance

Charge Temperature:

• 0.1C@(32℉~50℉)
• 0.2C@(50℉~68℉)
• 0.5C@(68℉~77℉)
• 1C@(77℉~113℉)
• 0.3C@(113℉~131℉)
• 0.2C@(131℉~140℉)

Discharge Temperature: -4℉~149℉ (cell surface ≤149℉)

Storage Temperature: -4℉~113℉ 90%RH Max (1 month); 32℉~95℉ 90%RH Max (6 months)

Recommended Storage Temperature: 32℉~113℉ 85%RH Max (reduced life if stored at high temp)

Others

• Certification: UL1973, UL9540A, FCC, UN38.3, MSDS
• Max. Expansion: 15 pcs in parallel

MEGA 335 PRO: 335 Watt Solar Panel

• Maximum Power(Pmax): 335W
• Maximum Power Voltage(Vmp): 29.2V
• Maximum Power Current(Imp): 11.5A
• Open Circuit Voltage(Voc): 36.9V
• Short Circuit Current(Isc): 11.8A
• Maximum System Voltage(Vmax): 1500VDC
• Temperature Range: -40°F ~ 185°F
• Max Series Fuse Rating: 20A
• Dimensions: 69.3 x 34.7 x 1.2 in
• Weight: 35.2 lb

Built-in Components

• Panel leads (pair): 3 feet each
• IP67-rated waterproof junction box
• IP67-rated waterproof solar connectors
• Bypass diodes built into the junction box

MEGA 400: 400 Watt Solar Panel

• Panel Cable Length: ≈ 14 in
• Material: Tempered Glass, Aluminum, Monocrystalline Silicon
• Dimensions: 67.9 x 44.6 x 1.2 in
• Weight: 49.4 lbs
• Maximum Power (PMAX): 400W
• Maximum Power Voltage (VMP): 30.9V

• Maximum Power Current (IMP): 12.9A
• Open Circuit Voltage (VOC): 37.1V
• Short Circuit Current (ISC): 13.7A

• Maximum System Voltage (VMAX): 1500VDC

• Temperature Range: -40 ~ +185°F

MEGA 410: 410 Watt Solar Panel

• Maximum Power(Pmax): 410W
• Maximum Power Voltage(Vmp): 31.3V
• Maximum Power Current(Imp): 13.1A
• Open Circuit Voltage(Voc): 37.5V
• Short Circuit Current(Isc): 13.8A
• Maximum System Voltage(Vmax): 1500VDC
• Temperature Range: -40°F ~ 185°F
• Max Series Fuse Rating: 25A

• Weight: 45.2 lb
• Dimensions: 67.9 x 44.6 x 1.2 in

Built-in Components

• Panel leads (pair): 4 feet each
• IP68-rated waterproof junction box
• IP67-rated waterproof solar connectors
• Bypass diodes built into the junction box

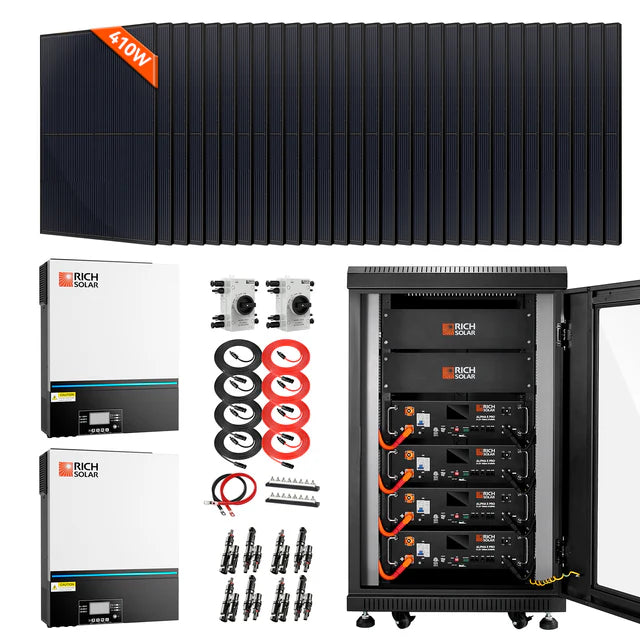

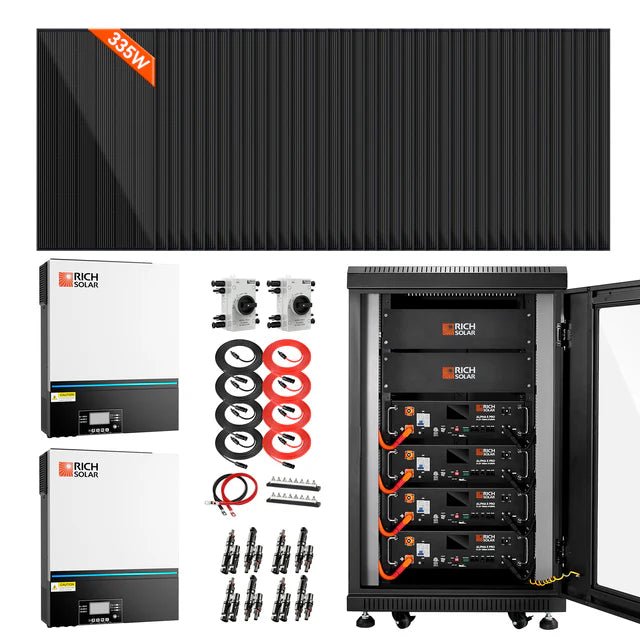

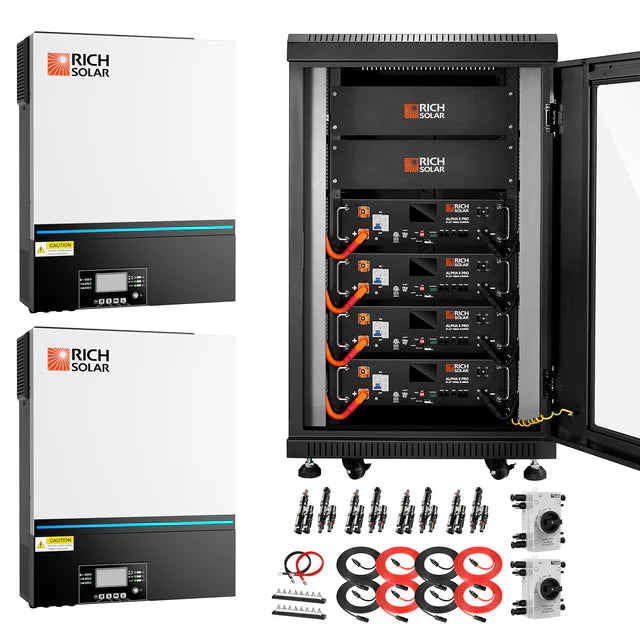

This kit includes:

• 2 x 6500 Watt (6.5kW) 48 Volt Off-grid Hybrid Solar Inverter (RS-H6548)
• 4 x 5.12kWh ALPHA 5 PRO Server Lithium Iron Phosphate Battery (RS-B5121P1)
• 2 x Solar PV DC Quick Disconnect Switch (RS-i4)
• 2 x Busbar 600 AMP
• 4 x 4 Foot 2/0 Gauge AWG Wire Set 3/8"
• 8 x 10 Gauge 50 Feet Solar Extension Cable (RS-50102)
• 4 x 10 Gauge 30 Feet Solar Extension Cable (RS-30102-T2)
• 1 x Free Battery Rack

Solar Panel Options：

• 38 x MEGA 335 Watt Monocrystalline Solar Panel (RS-M335)
• 32 x MEGA 400 Watt Monocrystalline Solar Panel (RS-M400)
• 30 x MEGA 410 Watt Monocrystalline Solar Panel (RS-M410)

View and Download

• NOVA 6548 6500 Watt (6.5kW) Manual
• 5120Wh Server ALPHA 5 PRO
