SunGoldPower 6500W/8000W 48V Off-Grid Solar Kit

Our off grid solar system kit contains nearly everything you need to bring off-grid solar power and storage to mid-sized off-grid homes or remote cabins. With 10.24KWH/20.48KWH Lithuim battery type and solar panel mounting, and you're on your way! This system includes a 6500W/ 8000W split phase Inverter/Charger, which power the most of 120V and 240V home applicance, with wifi remote monitoring, auto generator start, you will get the clean,quiet and amazing off grid power !

Specifications

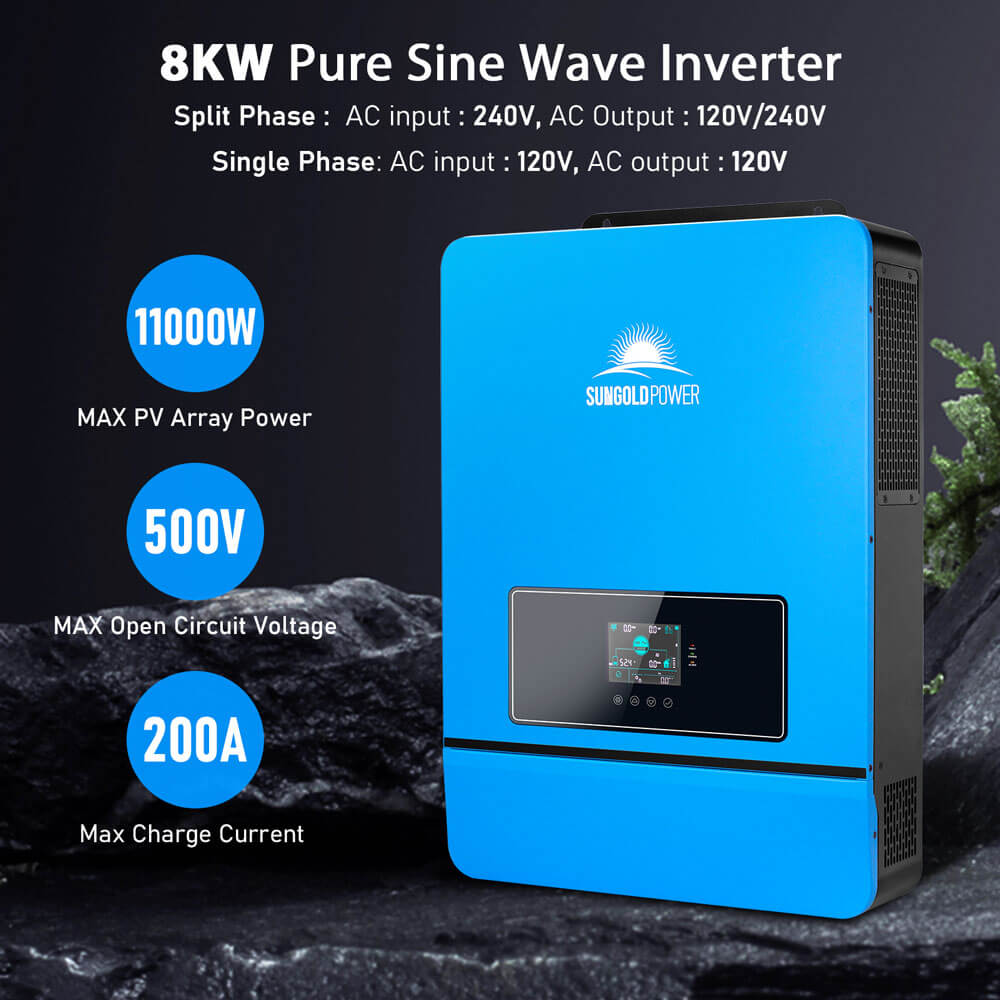

8000 Watt Solar Inverter

AC Output Power: 8000 W (with parallel function)
Output Waveform: Pure sine wave
AC Output Voltage: 120/240 V (split phase / single phase)
Parallel Capability: Up to 6 units in parallel
Maximum PV Input Voltage: 500 V DC
Efficiency: 92%
Maximum PV Array Current: 200 A
Maximum PV Array Power: 11,000 W
Dimensions: 25.6 × 17.7 × 5.1 in
Weight: 53.5 lb
Warranty: 3 Years
Certification: UL1741 (ETL Listed)

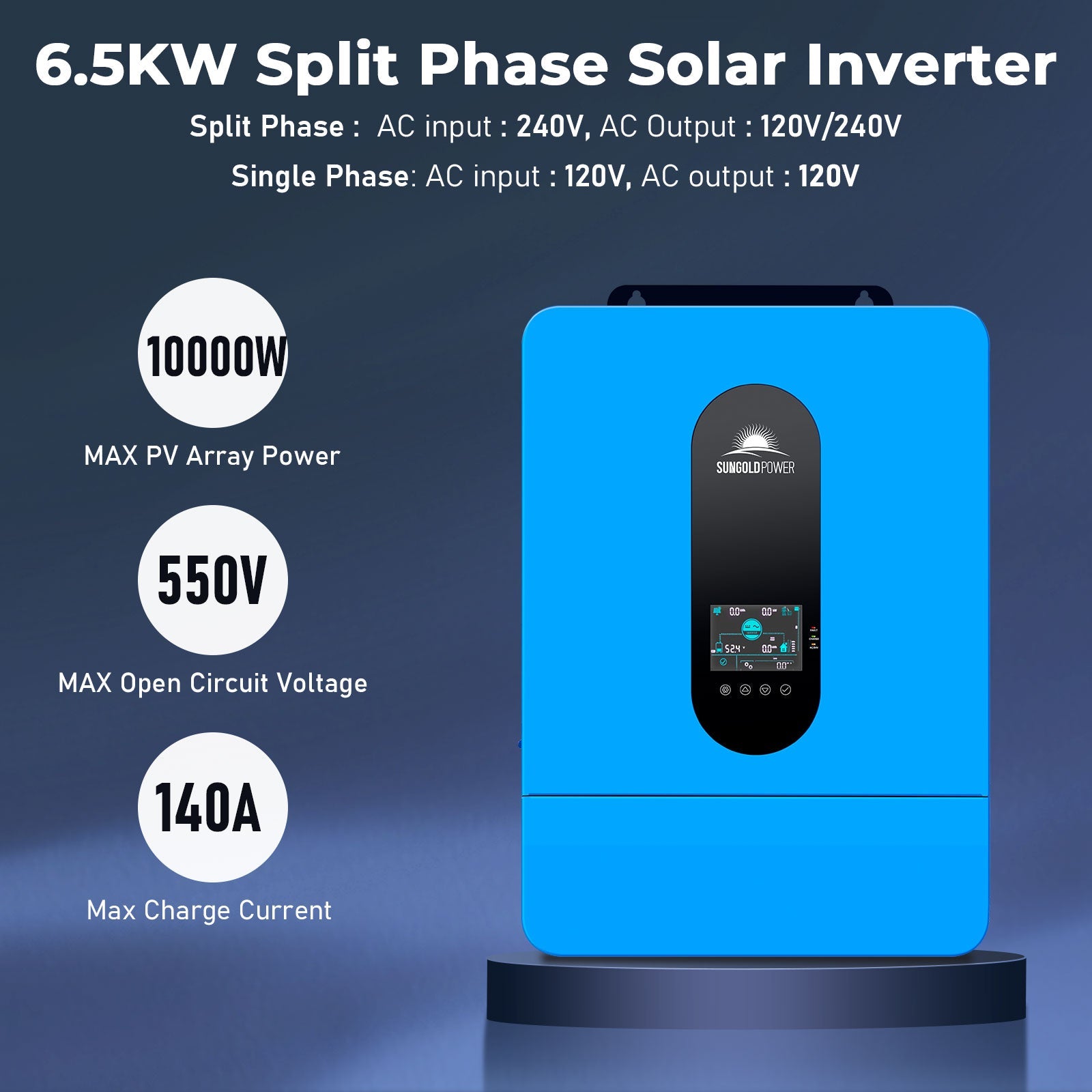

6500 Watt Split Phase Solar Inverter

AC Output: 6.5KW with Parellel Function
Output Waveform: Pure Sine Wave
AC Output: 120/240VAC (split phas/single phase)
Parellel Function: Up to 6 units Parallel
Efficiency: 93%
Max Charging Current: 140A
Maximum PV Array Power: 5000W+5000W
Dimension: 23.0 x 16.2 x 5.3 inch
Weight: 42lbs.
Warranty: 3 Years.

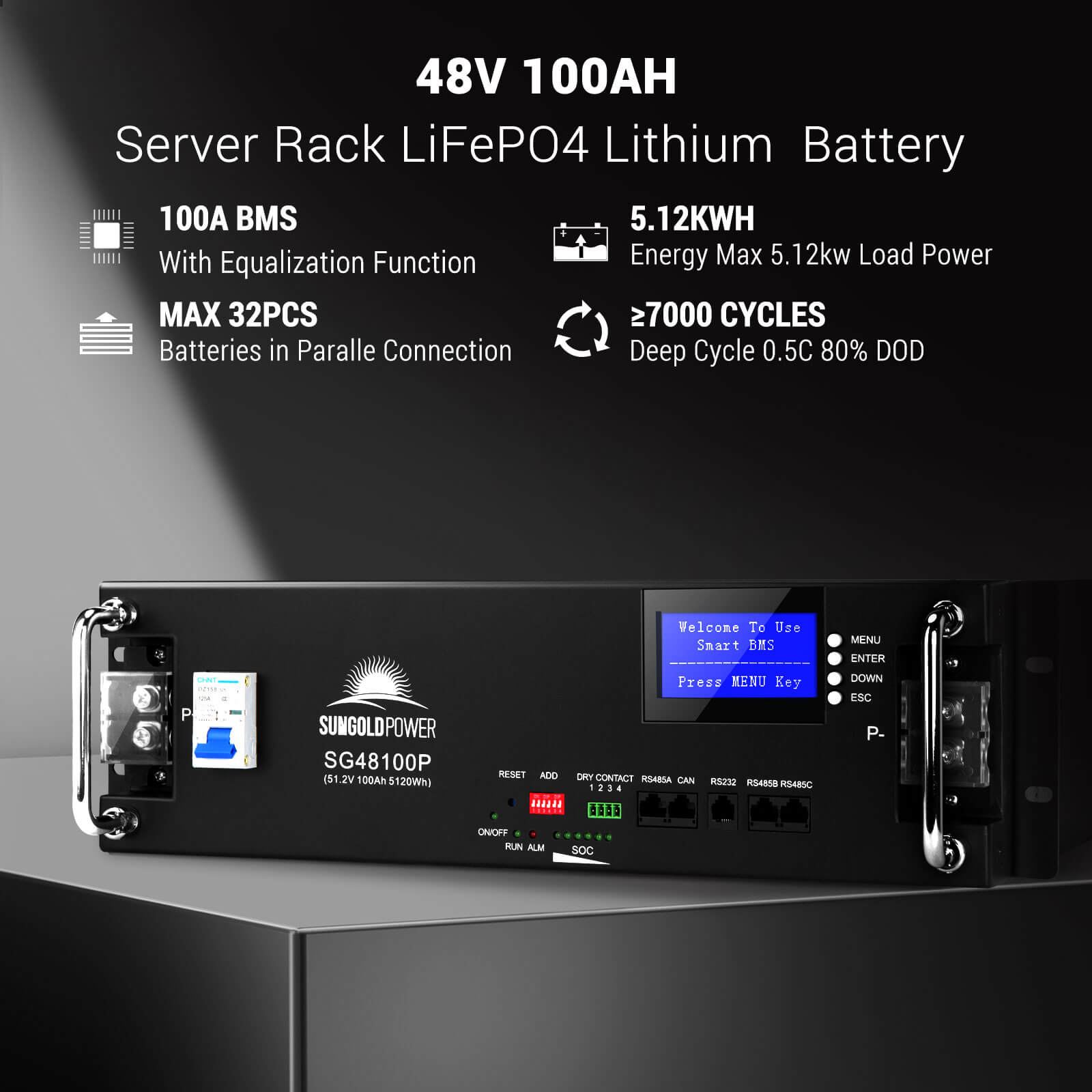

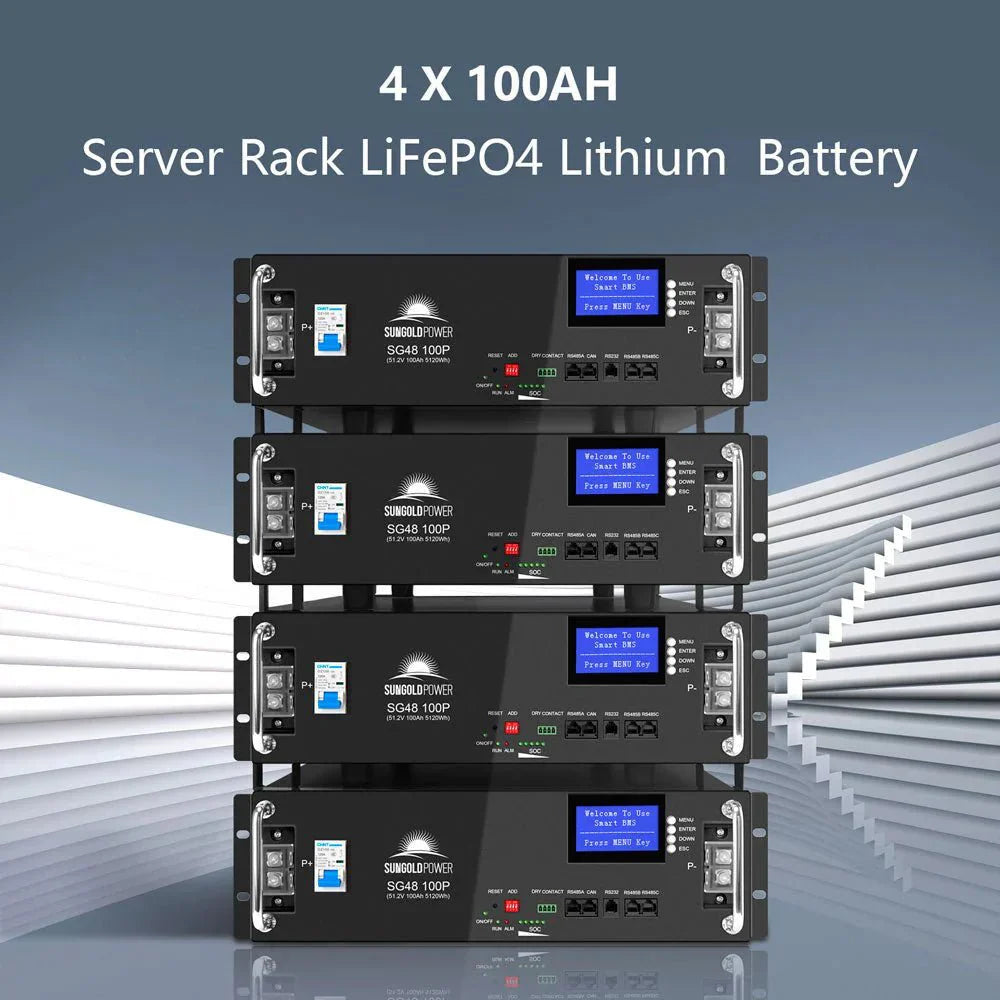

SG48100P LifePO4 Battery

Nominal Voltage: 51.2 V
Nominal Capacity: 100 Ah
Energy Storage: 5.12 kWh
Charge Cut-off Current: 5 A
Max Continuous Charge Current: 100 A
Discharge Cut-off Voltage: 43.2 V
Cycle Life: ≥7000 cycles
Communication Protocols: RS232 / RS485 / CAN (supports multiple protocols)
Storage Temperature: 14 °F to +113 °F
Dimensions: 19.3 × 18.9 × 5.5 in
Weight: 93 lbs
Warranty: 10 Years

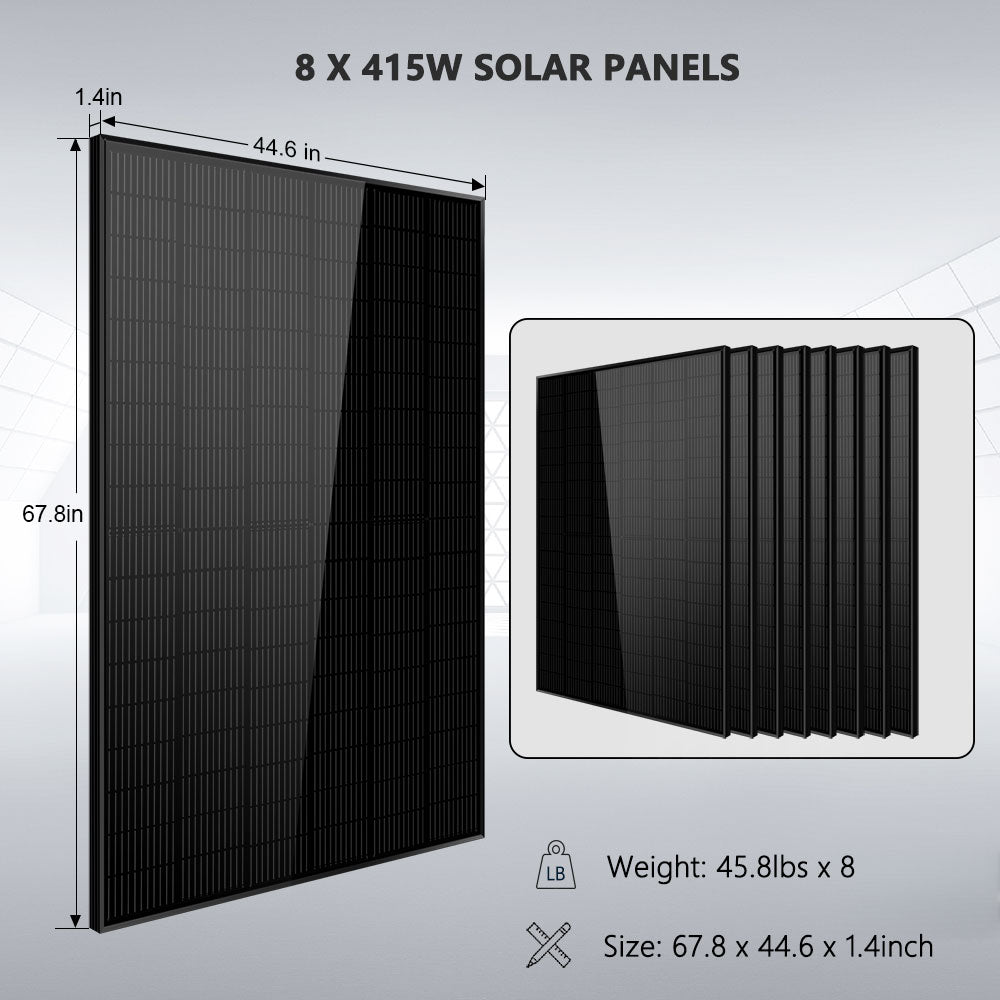

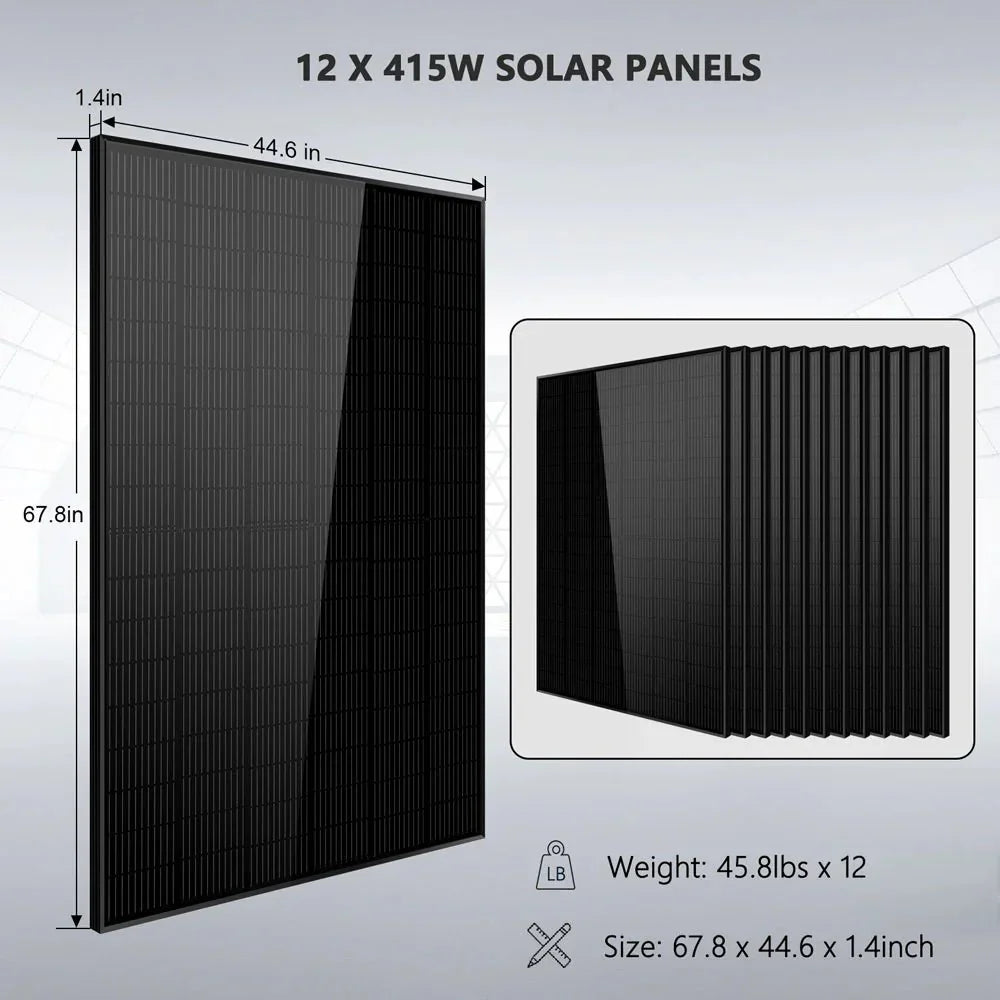

415 Watt Mono Solar Panel

Peak Power: 415 W
Solar Cell Type: Monocrystalline
Power Tolerance: ±3%
Maximum Power Current (Imp): 13.13 A
Maximum Power Voltage (Vmp): 31.61 V
Short-Circuit Current (Isc): 13.79 A
Open-Circuit Voltage (Voc): 38.82 V
Dimensions: 67.8 × 44.6 × 1.4 in
Weight: 45.1 lbs
Warranty: 25 Years
Certifications: UL61730, TUV, IEC, CEC, CE

What's Included

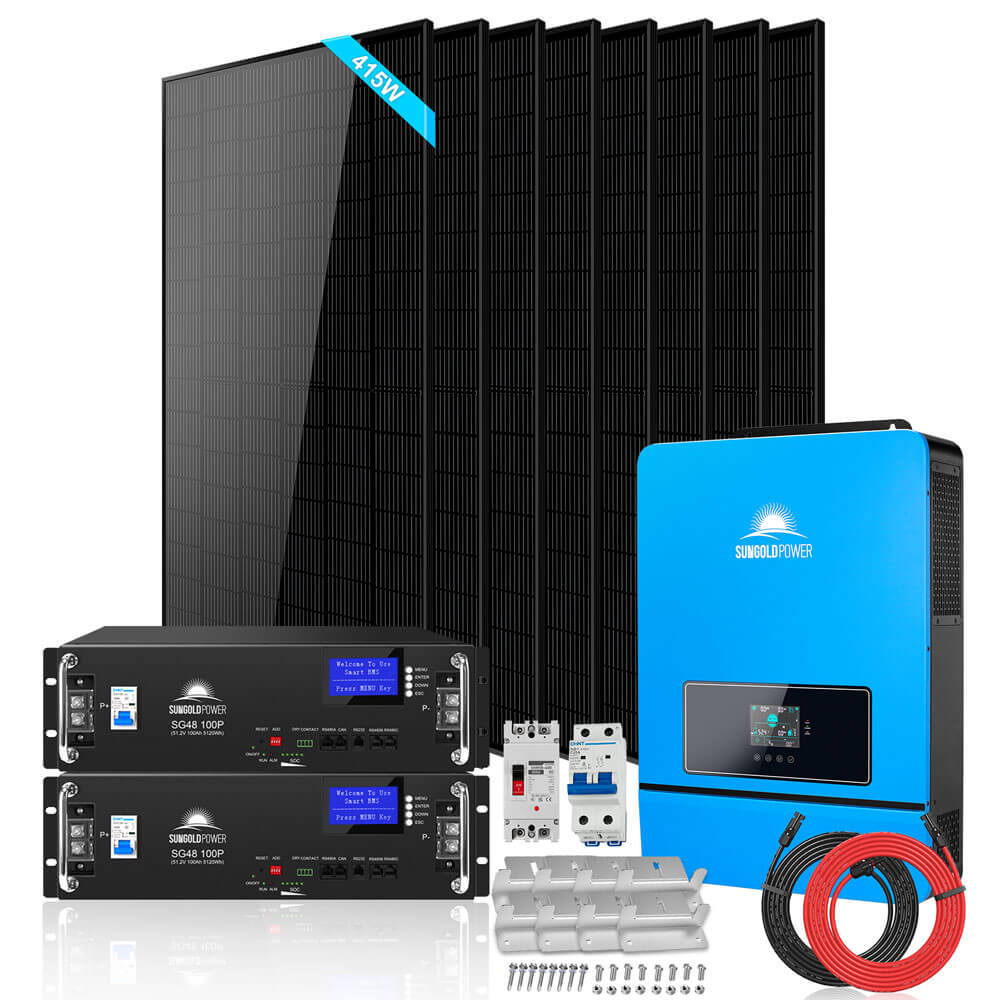

SGR-8K10E:

1 X 8000W 48Vdc 120/240Vac Inverter Up to 6 units Parallel
8 X 415 Watt Monocrystalline Solar Panels
2 X 100AH 51.2V Lifepo4 Battery
1 Sets X 50 Feet, Solar Extension Cables-Inverter PV input
8 X Sets of Mounting Z-Brackets
1 X 200A DC Breaker
1 X 25A PV Breaker

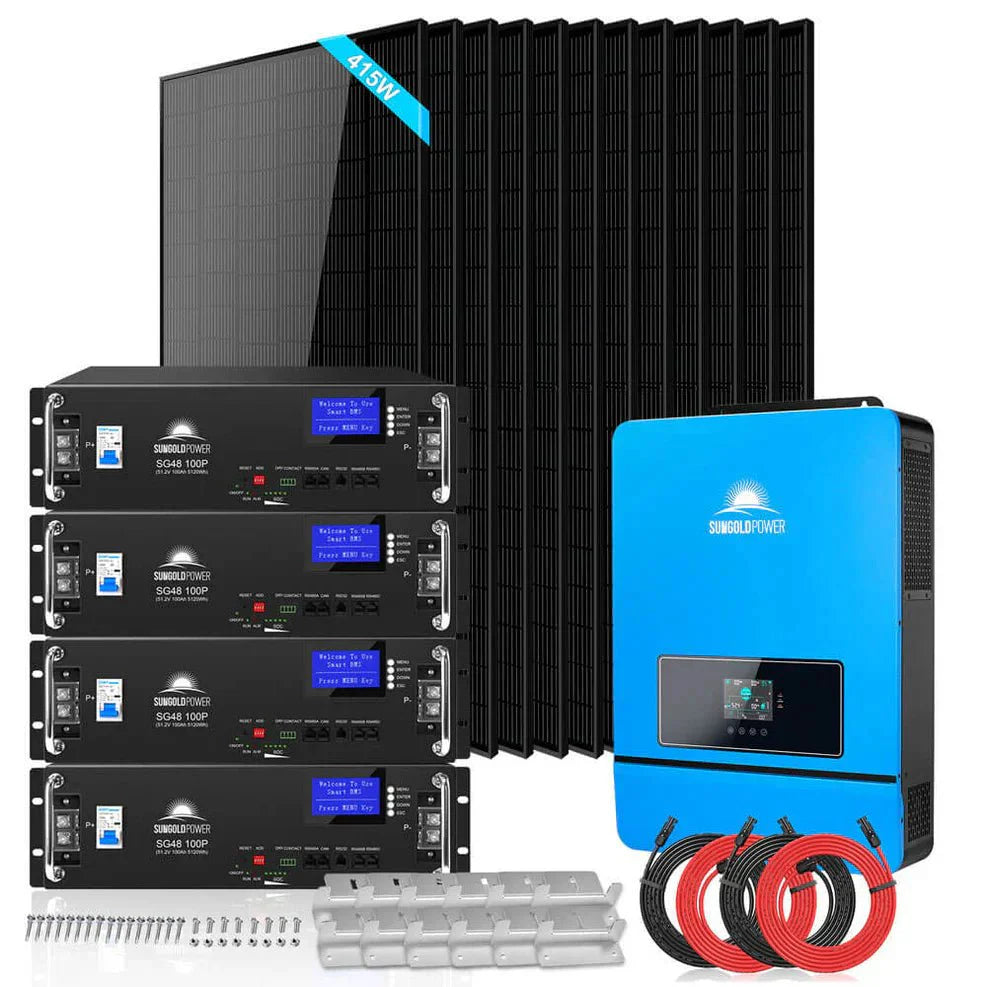

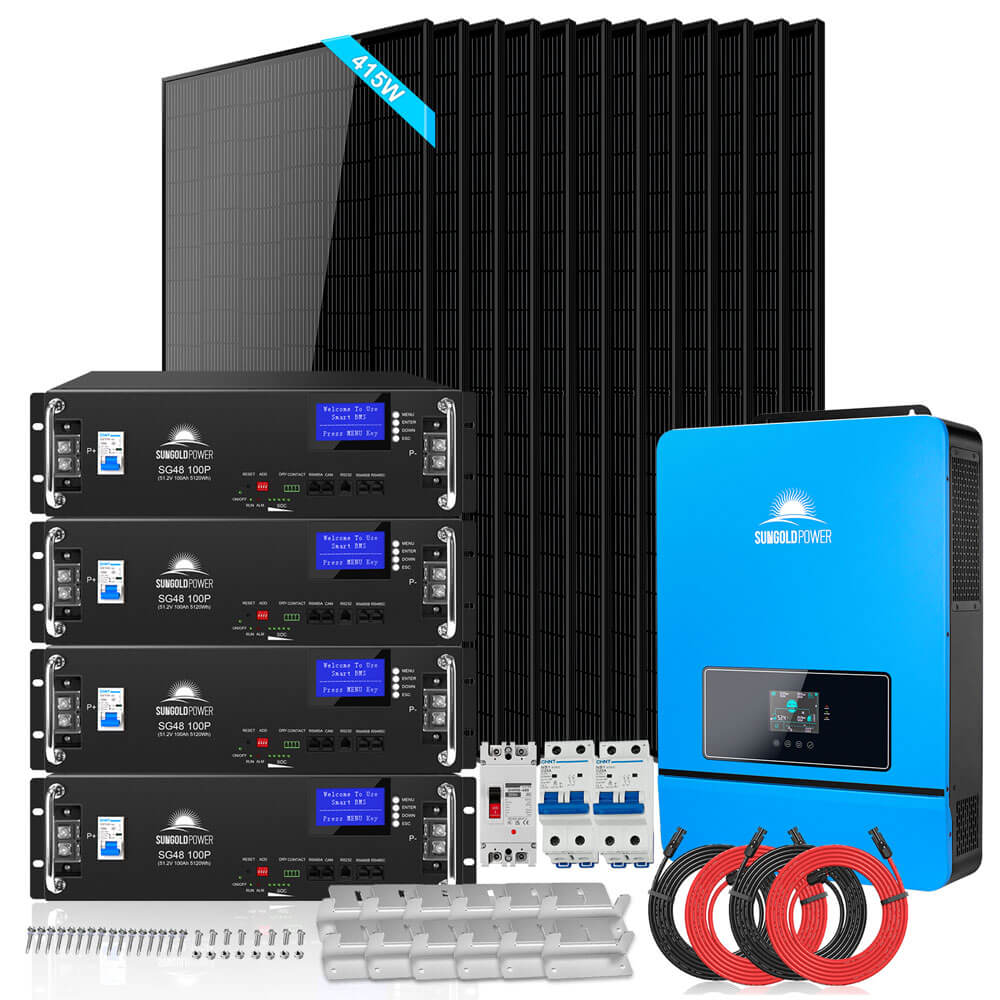

SGM-8K20:

1 X 8000W 48Vdc 120/240Vac Inverter Up to 6 units Parallel
12 X 415 Watt Monocrystalline Solar Panels
4 X 100AH 51.2V Lifepo4 Battery
2 Sets X 50 Feet, Solar Extension Cables-Inverter PV input
12 X Sets of Mounting Z-Brackets
1 X 200A DC Breaker
2 X 25A PV Breaker

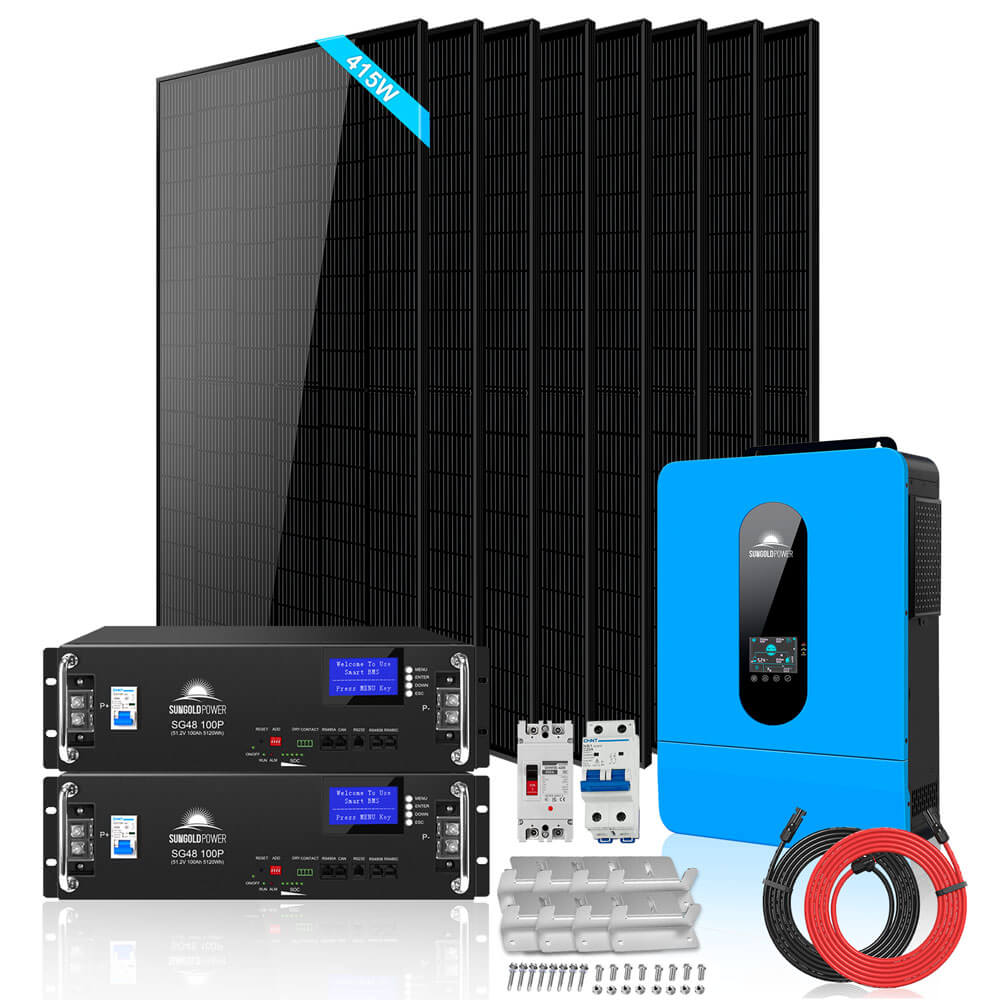

SGR-6510E:

1 X 6500W 48Vdc 120/240Vac Inverter Up to 6 units Parallel
8 X 415 Watt Monocrystalline Solar Panels
2 X 100AH 51.2V Lifepo4 Battery
1 X 50 Feet, Solar Extension Cables-Inverter PV input
8 X Sets of Mounting Z-Brackets
1 X 200A DC Breaker
1 X 25A PV Breaker
