SunGoldPower 8000W 48V Complete off Grid Solar Kit

SunGoldPower 8000W 48V Complete off Grid Solar Kit

$6,441.00 $7,149.51

You Save: $708.51 10%

.. people are viewing this, and 3 recently purchased it

SunGoldPower 8000W 48V Complete off Grid Solar Kit

Specifications

Solar Kit

Max Continuous Output: 8000W
AC Output: 120V/240V
DC Voltage: 48V
Max Solar Input: 11,000W
Total Watt of Panels: 3320W
Per Panel Watt: 415Watt
Panel No.: 8pcs.
Total KWH of Batteries: 10.24KWH
Chemistry: Lithium
Battery No.: 2pcs.
Battery Spec.: 48V 100AH

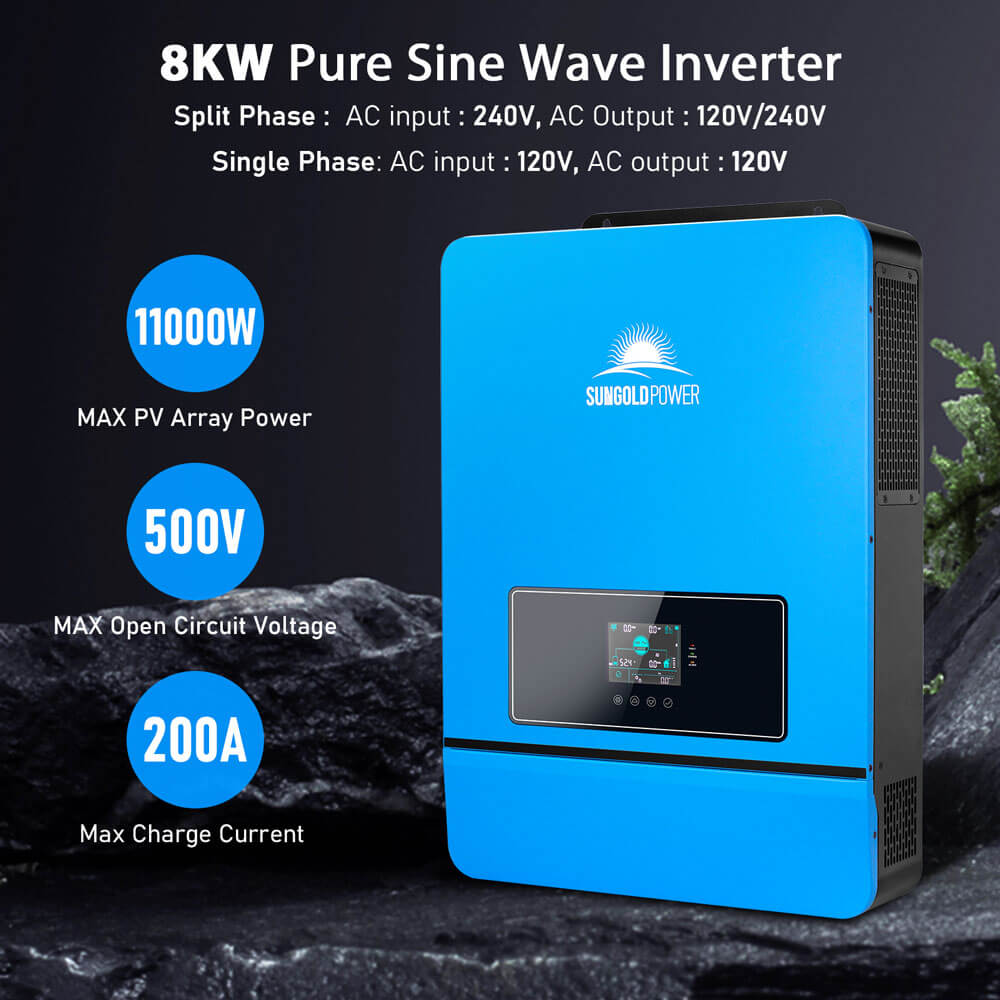

8000 Watt Split Phase Solar Inverter

AC Output Power: 8000 W (with parallel function)
Output Waveform: Pure sine wave
AC Output Voltage: 120/240 V (split phase / single phase)
Parallel Capability: Up to 6 units in parallel
Maximum PV Input Voltage: 500 V DC
Efficiency: 92%
Maximum PV Array Current: 200 A
Maximum PV Array Power: 11,000 W
Dimensions: 25.6 × 17.7 × 5.1 in
Weight: 53.5 lb
Warranty: 3 Years
Certification: UL1741 (ETL Listed)

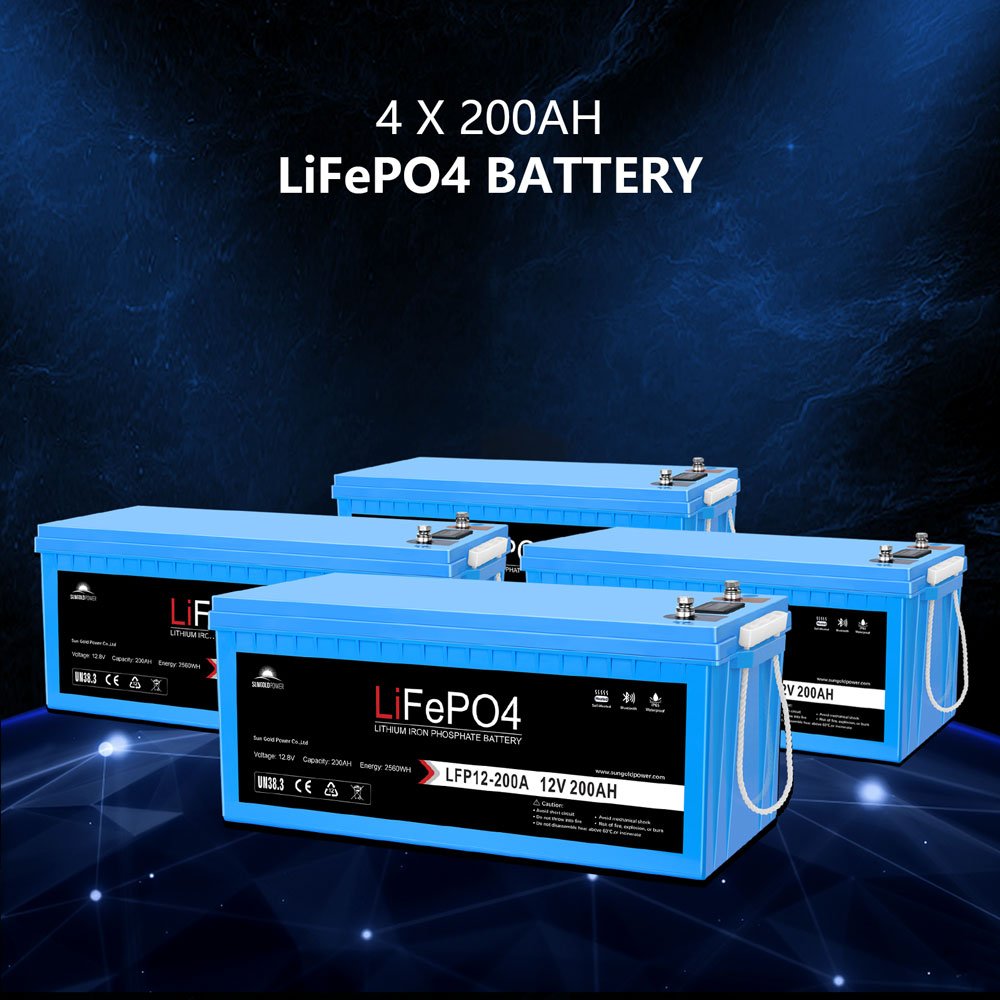

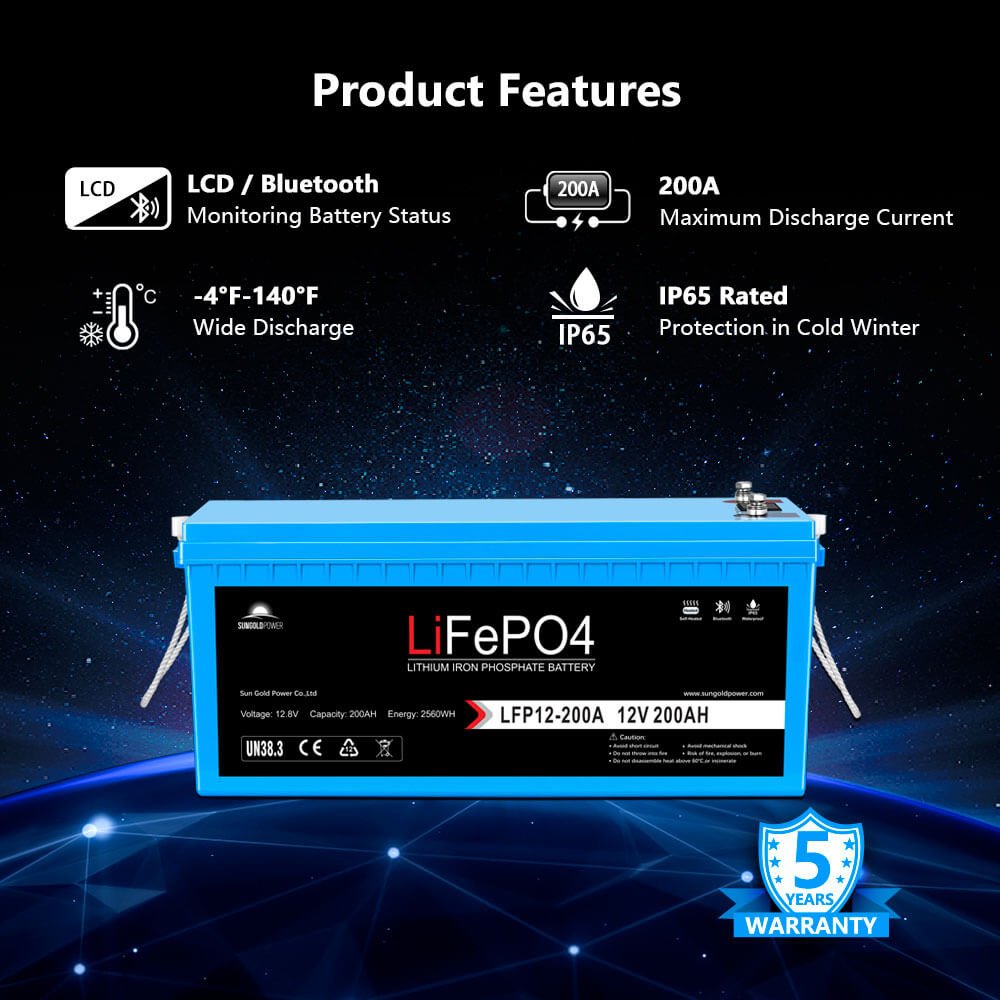

LifeP04 Battery

Nominal Voltage: 12.8V
Nominal Capacity: 200AH
Energy: 2560WH
Voltage Window: 10.8–14.6V
Max Continuous Charge Current: 150A
Peak Discharge Current: 245A
Cycle Life: >4000
Main Character: Self Heating / IP65
Monitoring Function: LCD/Bluetooth
Warranty: 5 Years

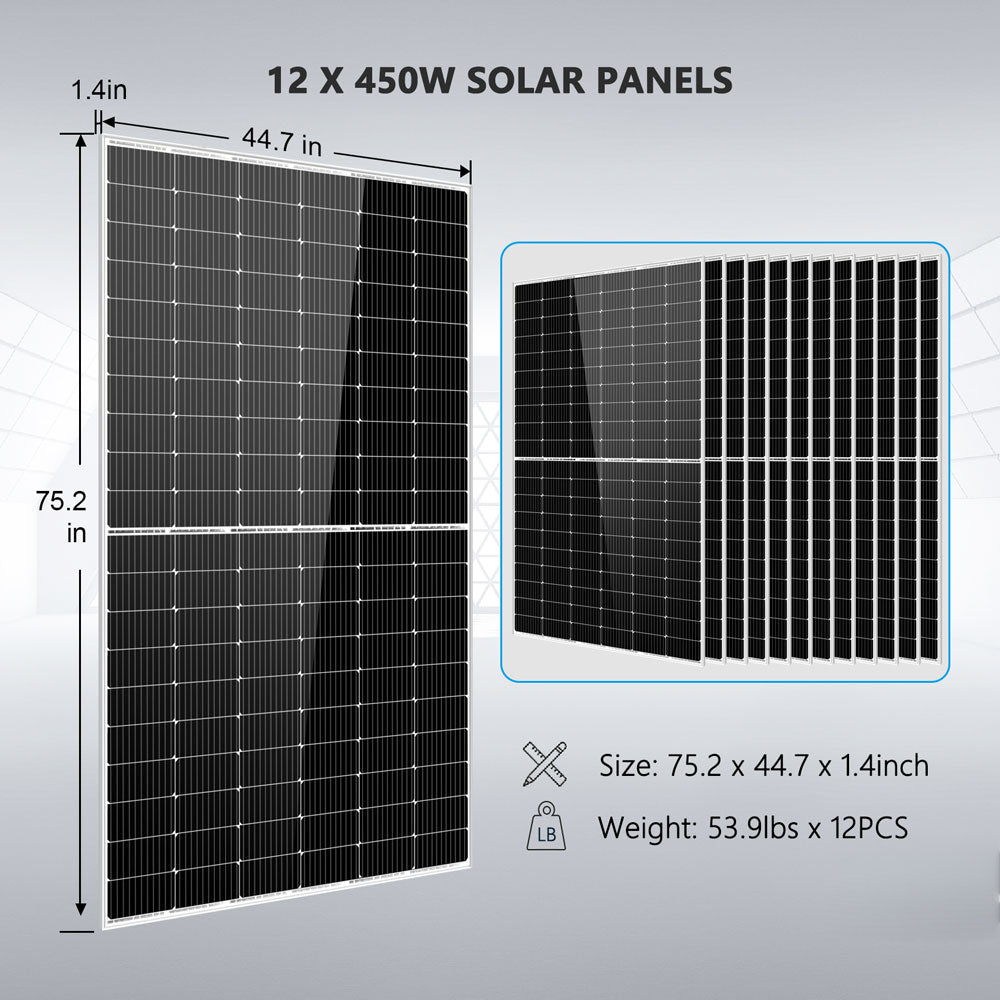

400 Watt Mono Solar Panel

Peak Power: 450W
Solar Cell: Monocrystalline
Product Tolerance: ±3%
Maximum Power Current (IMP): 13.16A
Maximum Power Voltage (VMP): 34.2V
Short Circuit Current (ISC): 13.82A
Open Circuit Voltage (VOC): 41.72V
Product Dimension: 75.2 × 44.7 × 1.4 in
Product Weight: 53.9 lbs
Warranty: 25 Years

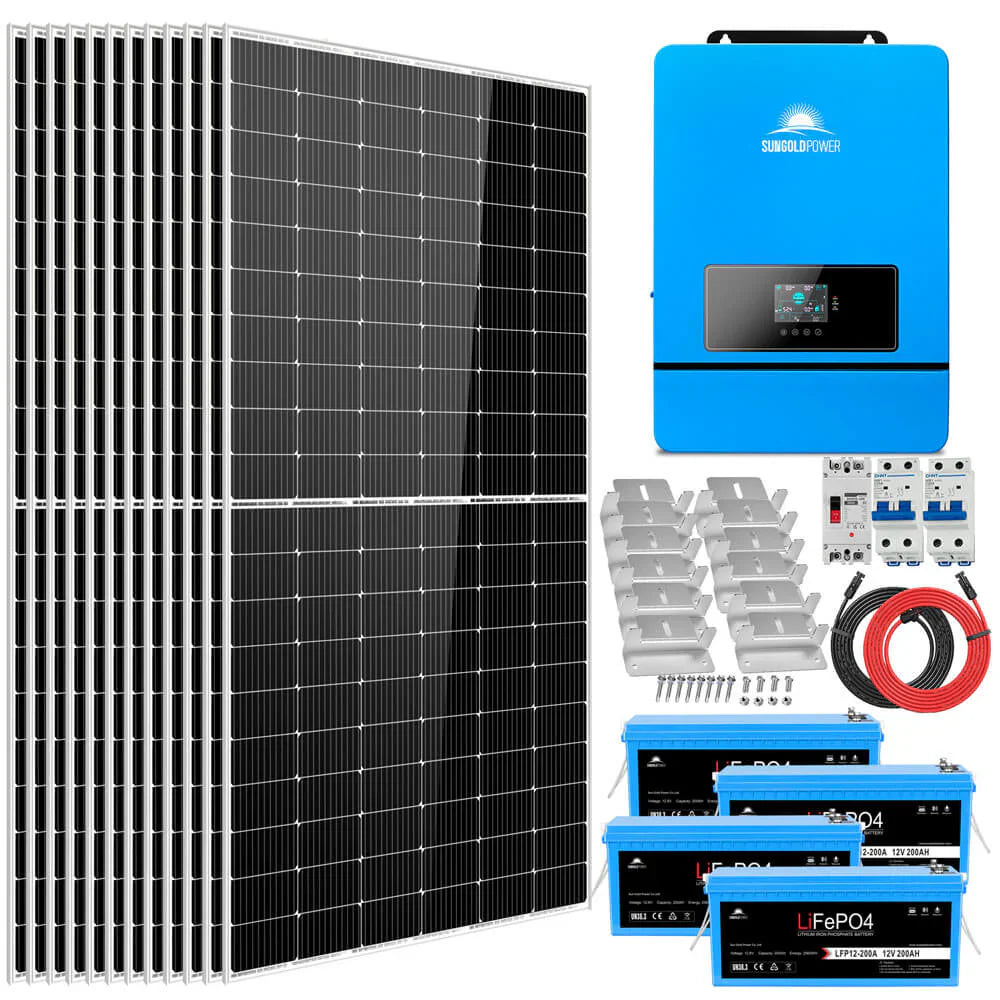

What's Included

SGK-8MAX

1 X 8000W 48Vdc 120/240Vac Inverter Up to 6 units Parallel
12 X 450 Watt Monocrystalline Solar Panels
4 X 200AH Lifepo4 Battery with Bluetooth
12 X Sets of Mounting Z-Brackets
1 X 200A DC Breaker
2 X 25A PV Breakers
1 x 50 Feet, Solar Extension Cables-Inverter PV input

View and Download

Wiring Diagram

SGK-8MAX solar kit

Description

SunGoldPower 8000W 48V Complete off Grid Solar Kit

Specifications

Solar Kit

Max Continuous Output: 8000W
AC Output: 120V/240V
DC Voltage: 48V
Max Solar Input: 11,000W
Total Watt of Panels: 3320W
Per Panel Watt: 415Watt
Panel No.: 8pcs.
Total KWH of Batteries: 10.24KWH
Chemistry: Lithium
Battery No.: 2pcs.
Battery Spec.: 48V 100AH

8000 Watt Split Phase Solar Inverter

AC Output Power: 8000 W (with parallel function)
Output Waveform: Pure sine wave
AC Output Voltage: 120/240 V (split phase / single phase)
Parallel Capability: Up to 6 units in parallel
Maximum PV Input Voltage: 500 V DC
Efficiency: 92%
Maximum PV Array Current: 200 A
Maximum PV Array Power: 11,000 W
Dimensions: 25.6 × 17.7 × 5.1 in
Weight: 53.5 lb
Warranty: 3 Years
Certification: UL1741 (ETL Listed)

LifeP04 Battery

Nominal Voltage: 12.8V
Nominal Capacity: 200AH
Energy: 2560WH
Voltage Window: 10.8–14.6V
Max Continuous Charge Current: 150A
Peak Discharge Current: 245A
Cycle Life: >4000
Main Character: Self Heating / IP65
Monitoring Function: LCD/Bluetooth
Warranty: 5 Years

400 Watt Mono Solar Panel

Peak Power: 450W
Solar Cell: Monocrystalline
Product Tolerance: ±3%
Maximum Power Current (IMP): 13.16A
Maximum Power Voltage (VMP): 34.2V
Short Circuit Current (ISC): 13.82A
Open Circuit Voltage (VOC): 41.72V
Product Dimension: 75.2 × 44.7 × 1.4 in
Product Weight: 53.9 lbs
Warranty: 25 Years

What's Included

SGK-8MAX

1 X 8000W 48Vdc 120/240Vac Inverter Up to 6 units Parallel
12 X 450 Watt Monocrystalline Solar Panels
4 X 200AH Lifepo4 Battery with Bluetooth
12 X Sets of Mounting Z-Brackets
1 X 200A DC Breaker
2 X 25A PV Breakers
1 x 50 Feet, Solar Extension Cables-Inverter PV input

View and Download

Wiring Diagram

SGK-8MAX solar kit
