SunGoldPower SGM-5K5E 5000W 48VDC 120V Off-Grid Solar Kit

SunGoldPower SGM-5K5E 5000W 48VDC 120V Off-Grid Solar Kit

$3,145.00 $3,931.25

You Save: $786.25 20%

.. people are viewing this, and 3 recently purchased it

SunGoldPower SGM-5K5E 5000W 48VDC 120V Off-Grid Solar Kit

SGM-5K5E Solar Kits come with mostly that you need to set up off-grid solar system, it includes the 5000W inverter allowing you to connect Max 5000W of solar panel, 6 X 200W solar panel, 5.12KWH powerwall battery, a set of solar cables and brackets.The Solar Array will produce around 5.12KWH per day based on 4 hours sun. The 5000 watt solar system is ready for expansion, up to 6 identical inverters can be paralleled in single-phase (120VAC) or split-phase (240VAC) or three-sphase (208V). You can add more batteries and solar panel according to your requirment, with Wi-Fi monitor shows the performance and energy data of your solar system through an app. Let's Enjoy off grid living and the adventure with Solar Energy Kit!

Specifications

Solar Kit

Max Continuous Output: 5000W
AC Output: 120V
DC Voltage: 48V
Max Solar Input: 5000W
Total Watt of Panels: 1200W
Per Panel Watt: 200W
Panel Quantity: 6 pcs
Total KWH of Batteries: 5.12 KWH
Battery Chemistry: Lithium
Battery Quantity: 1 pc
Battery Specification: 48V 100AH

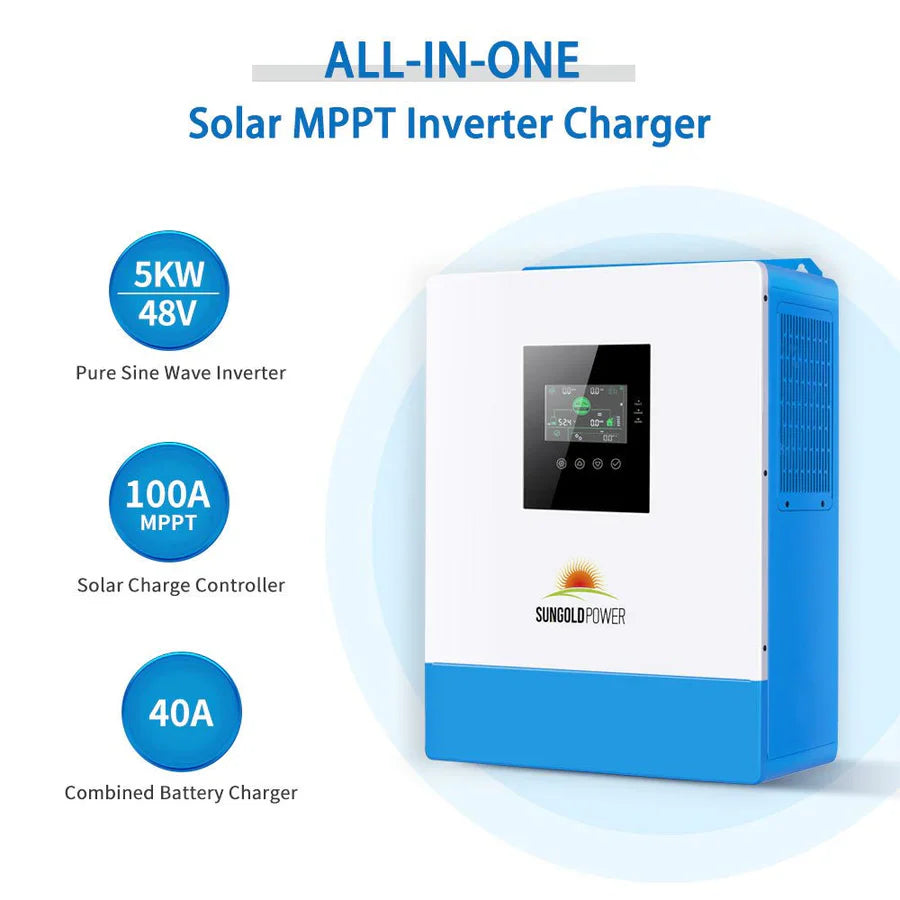

5000 Watt Solar Inverter

AC Output: 5000W Solar Inverter with Wifi Model
Output Waveform: Pure Sine Wave
AC Output: 120V 50Hz/60Hz
Max PV Input: 50VDC
Efficiency: >95%
Max Charging Current: 100A
Maximum PV Array Power: 5500W
Dimension: 17.3 x 12.8 5.1 inch
Weight: 28 bls.
Warranty: 3 Years.

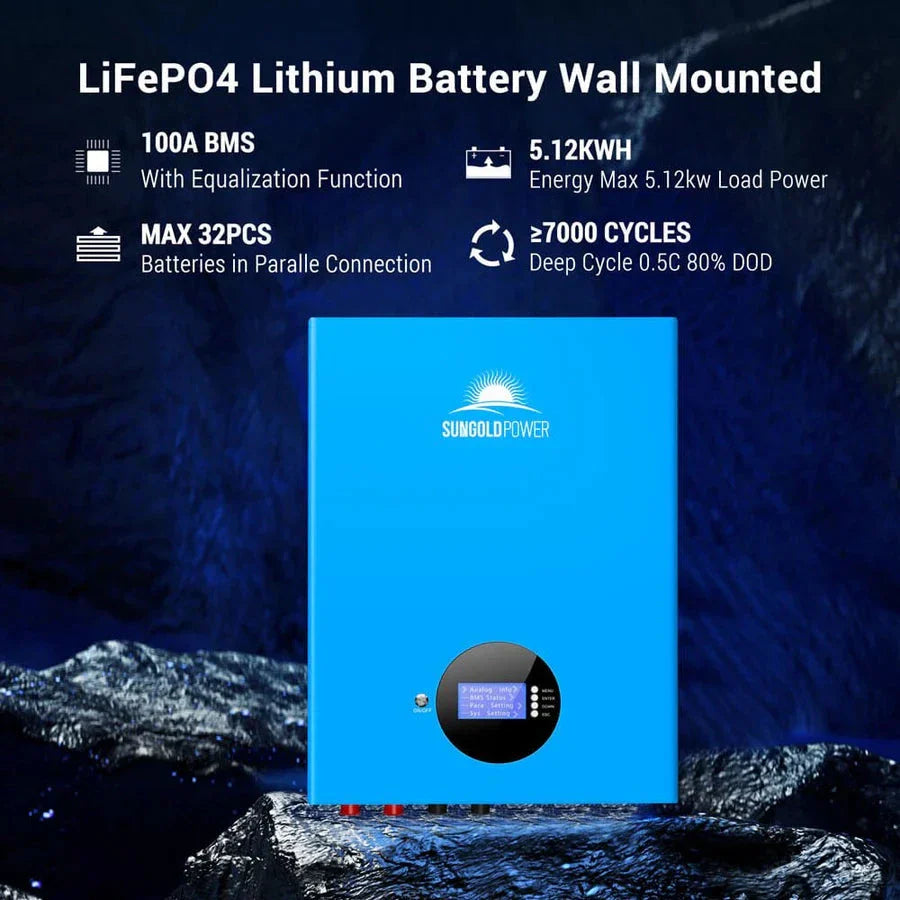

LifeP04 Lithium Battery

Nominal Voltage: 51.2 V
Capacity: 100 Ah (5.12 kWh energy)
Charge Cut-off Current: 5 A
Max Continuous Charge Current: 100 A
Discharge Cut-off Voltage: 43.2 V
Cycle Life: Over 7000 cycles
Communication Protocols: RS232, RS485, CAN
Storage Temperature: –10 °F to +45 °F
Dimensions: 23 × 16.5 × 6 inches
Weight: 113.4 lbs
Warranty: 10 years

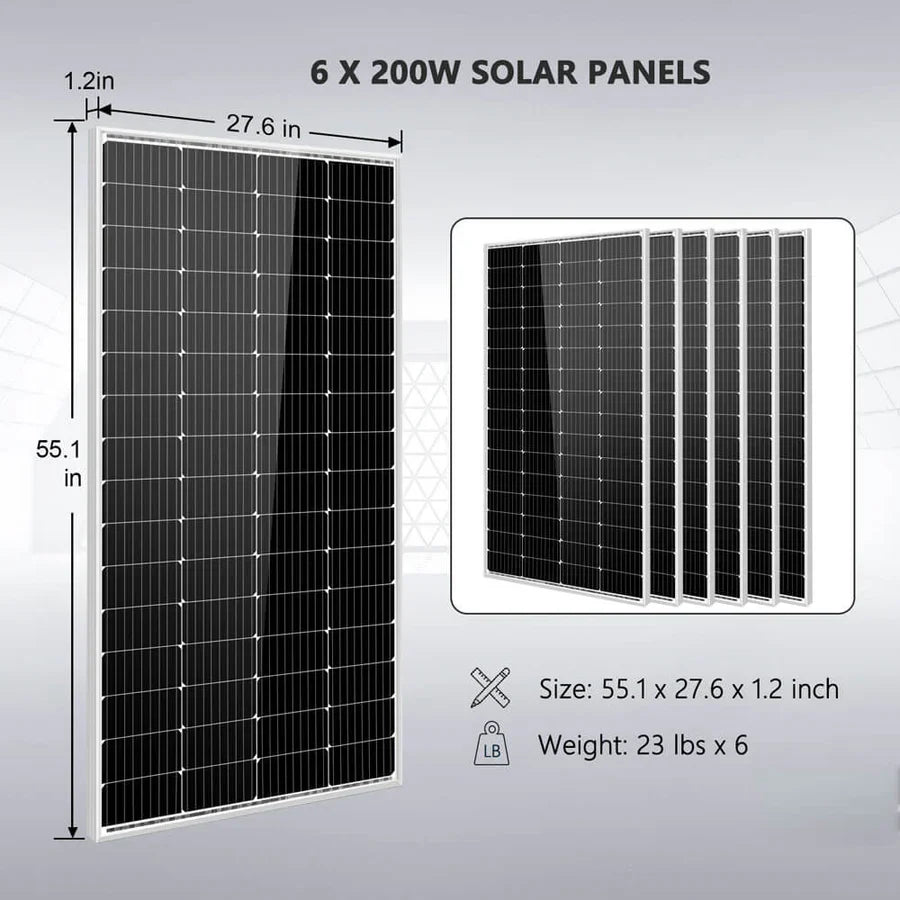

200 Watt Mono Solar Panel

Peak Power: 200 W
Solar Cell Type: Monocrystalline
Tolerance: ±3%
Max Power Current (Imp): ~5.86 A
Max Power Voltage (Vmp): ~36.16 V
Short-Circuit Current (Isc): ~5.86 A
Open-Circuit Voltage (Voc): ~43.39 V
Dimensions: 55.1 × 27.6 × 1.2 inches
Weight: 23.32 lbs
Warranty: 25 years
Certifications: UL61730, TUV, IEC, CEC, CE

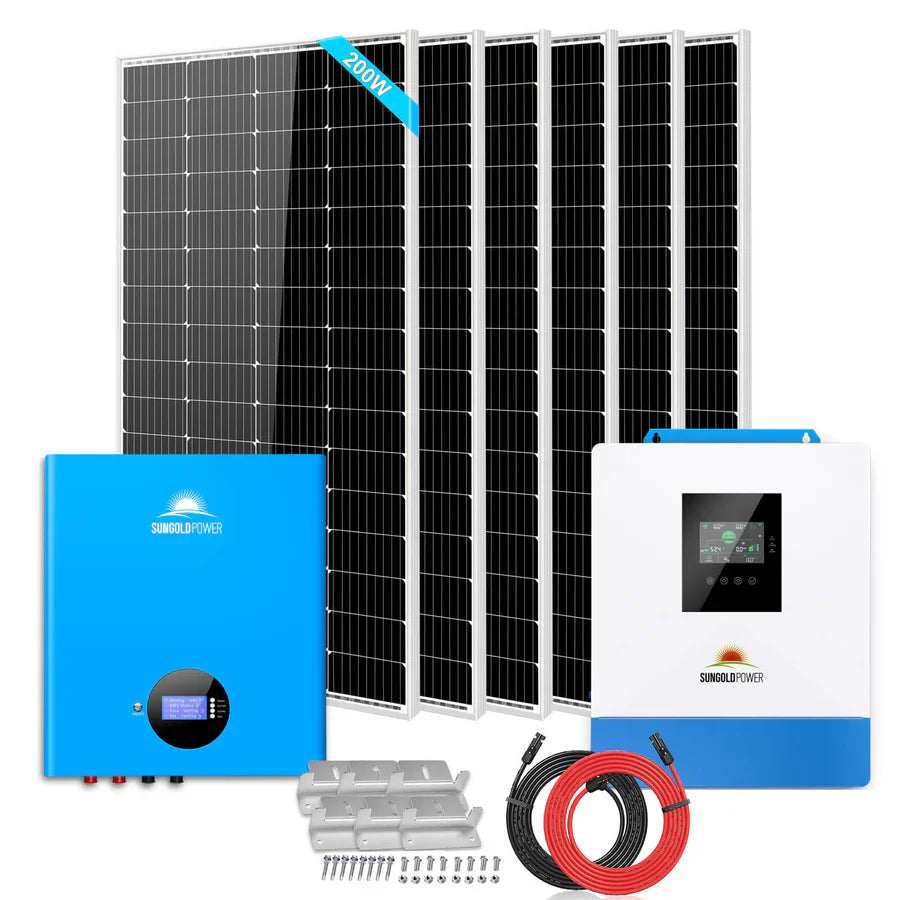

What's Included

1 X 5000 Watt 48V DC 120V Output with Wifi Model
6 X 200 Watt Monocrystalline Solar Panels
1 X 100AH 51.2V Lifepo4 Battery
1 Sets X 50 Feet, Solar Extension Cables-Inverter PV input
6 X Sets of Mounting Z-Brackets

Description

SunGoldPower SGM-5K5E 5000W 48VDC 120V Off-Grid Solar Kit

Specifications

Solar Kit

Max Continuous Output: 5000W
AC Output: 120V
DC Voltage: 48V
Max Solar Input: 5000W
Total Watt of Panels: 1200W
Per Panel Watt: 200W
Panel Quantity: 6 pcs
Total KWH of Batteries: 5.12 KWH
Battery Chemistry: Lithium
Battery Quantity: 1 pc
Battery Specification: 48V 100AH

5000 Watt Solar Inverter

AC Output: 5000W Solar Inverter with Wifi Model
Output Waveform: Pure Sine Wave
AC Output: 120V 50Hz/60Hz
Max PV Input: 50VDC
Efficiency: >95%
Max Charging Current: 100A
Maximum PV Array Power: 5500W
Dimension: 17.3 x 12.8 5.1 inch
Weight: 28 bls.
Warranty: 3 Years.

LifeP04 Lithium Battery

Nominal Voltage: 51.2 V
Capacity: 100 Ah (5.12 kWh energy)
Charge Cut-off Current: 5 A
Max Continuous Charge Current: 100 A
Discharge Cut-off Voltage: 43.2 V
Cycle Life: Over 7000 cycles
Communication Protocols: RS232, RS485, CAN
Storage Temperature: –10 °F to +45 °F
Dimensions: 23 × 16.5 × 6 inches
Weight: 113.4 lbs
Warranty: 10 years

200 Watt Mono Solar Panel

Peak Power: 200 W
Solar Cell Type: Monocrystalline
Tolerance: ±3%
Max Power Current (Imp): ~5.86 A
Max Power Voltage (Vmp): ~36.16 V
Short-Circuit Current (Isc): ~5.86 A
Open-Circuit Voltage (Voc): ~43.39 V
Dimensions: 55.1 × 27.6 × 1.2 inches
Weight: 23.32 lbs
Warranty: 25 years
Certifications: UL61730, TUV, IEC, CEC, CE

What's Included

1 X 5000 Watt 48V DC 120V Output with Wifi Model
6 X 200 Watt Monocrystalline Solar Panels
1 X 100AH 51.2V Lifepo4 Battery
1 Sets X 50 Feet, Solar Extension Cables-Inverter PV input
6 X Sets of Mounting Z-Brackets
